GBH 18V-22 X SDS+ Hammer Drill

£237.95Body only · at Tooled Up · + £5.95 delivery · Available to order

View at Tooled Up › We may earn a commission

‹ SDS+ Hammer Drills

18V Professional · Brushless Bosch GBH 18V-22 X Professional Brushless ONECHUCK SDS+ Rotary Hammer (Body Only)

SDS+ Hammer Drills · Bosch 18V Professional

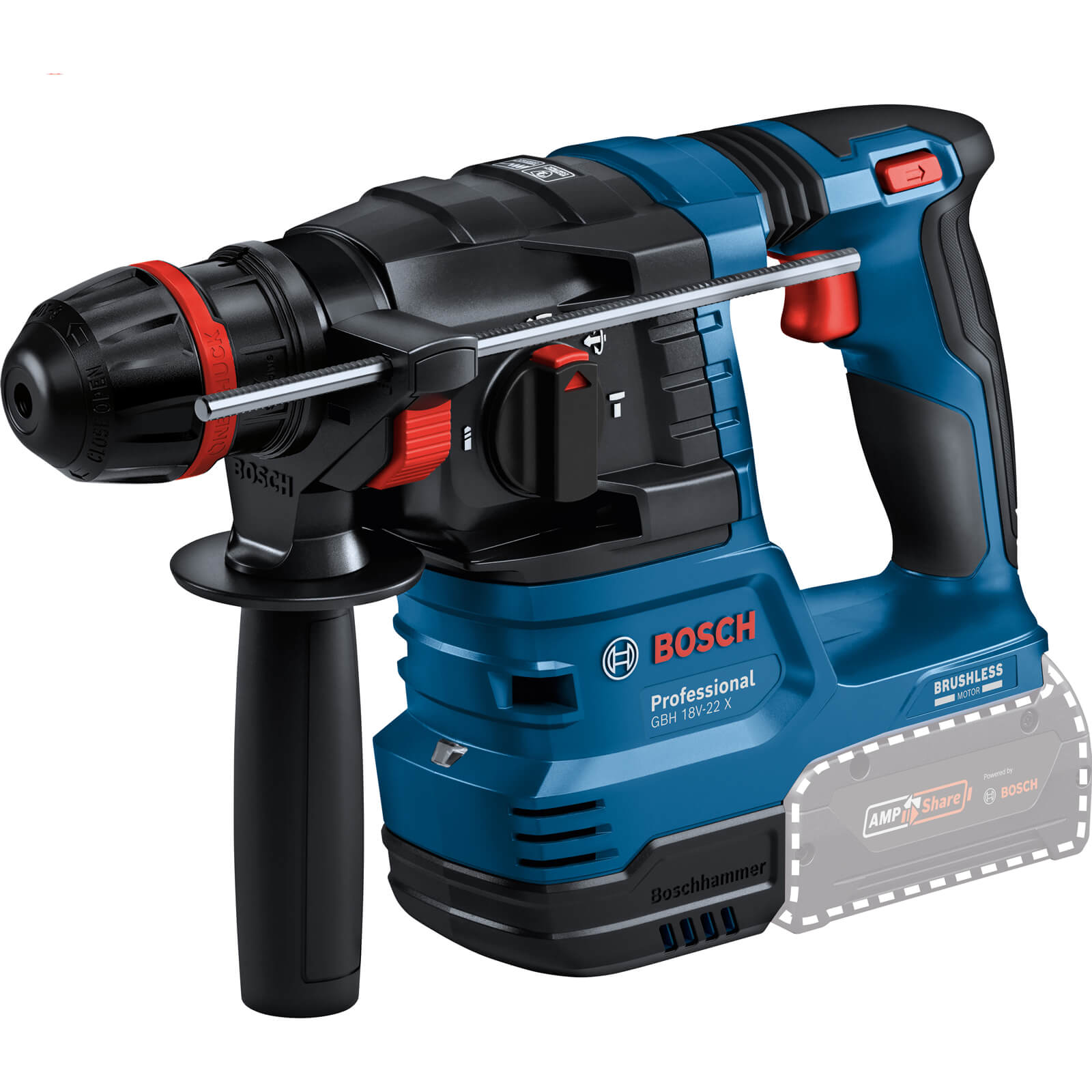

Bosch GBH 18V-22 X Professional Brushless ONECHUCK SDS+ Rotary Hammer (Body Only)

Name: Bosch GBH 18V-22 X Professional Brushless ONECHUCK SDS+ Rotary Hammer (Body Only)
Brand: Bosch
SKU: 0611924100
Availability: BackOrder

2.6kg bare18V3 years (with registration)

18V brushless rotary hammer with a ONECHUCK for SDS+, round and hex shank bits, 2 J impact energy and holes up to 22mm in concrete. Chisel mode, KickBack Control and Vibration Control.

Adds it to My Tools, kept on this device

How do you want it?3 ways to buy · tap one to see what's in the box

Lowest price we track

£237.95at Tooled Up · + £5.95 delivery · Available to order

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£237.95 + £5.95 delivery · Available to order£243.90View ›

My Tool Shed£237.95 + £5.95 delivery · Available to order£243.90View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

Impact energy

22mm

Max hole, concrete

4,675bpm

Impact rate

2.6kg

Weight (bare)

Where it sits among sds+ hammer drills

Against the 124 sds+ hammer drills we list. Not a score: bigger isn't always better for your job.

Impact energy2J

1J lowestMakita HR140Dhighest 5.8JBosch GBH 18V-34 CF

Max hole, concrete22mm

12mm lowestEinhell TE-HD 18/12 Lihighest 35mmHiKOKI DH3635DC

Impacts per minute4,675

2,900 lowestBosch GBH 18V-34 CFhighest 6,000Einhell TE-HD 18/12 Li

Weight (bare)2.6kg

1.5kg lightestEinhell TE-HD 18/12 Liheaviest 6.1kgEinhell RT-RH 32

Compare it with: + Milwaukee M18 BLHX + HiKOKI DH18DPA + Makita DHR242 + DeWalt DCH274

Full specs

From Bosch's own documentation. Checked 03/10/2026. Report a spec error ›

Hammer & Drilling

Chuck systemSDS+

Impact energy2 J

Measured to EPTA✓ Yes

Impact rate4,675 bpm

No-load speed0–1,050

Max hole, concrete22 mm

Best range, concrete6–12mm

Max hole, wood26 mm

Max hole, steel13 mm

Dust extractionGDE 18V-12 / GDE 12

Physical & Build

Weight (bare)2.6 kg

Weight (with battery)3.2 kg

LED work light✓ Yes

Noise level94 dB(A) LpA / 102 dB(A) LwA

Vibration (hammer drilling)14.7 m/s²

Vibration (chiselling)9.6 m/s²

Modes & Handling

ModesHammer drilling / Drilling without impact / Vario-Lock chisel position / Chiselling

Chisel only✓ Yes

Chisel position lock✓ Yes

Drill only (no hammer)✓ Yes

BodyInline or D-handle

Anti-vibration✓ Yes

Anti-vibration systemVibration Control

Electronic anti-rotation✓ Yes

Anti-rotation systemKickBack Control

Safety clutch✓ Yes

Power & Motor

Voltage18V

MotorBrushless

Powered by Bosch 18V Professional · 13

All 13 batteries that fit this tool, smallest first. Kits and chargers ›

GBA18V-20 2.0Ah · 36Wh 0.35kg 2.95kg £56.99at Machine Mart + £4.99 delivery View at Machine Mart ›

GBA18V-30 3.0Ah 0.6kg 3.2kg No retailer price yet About this battery ›

PROCORE18V-40 4.0Ah · 72Wh 0.52kg 3.12kg from £54.99at Tooled Up + £6.95 delivery View at Tooled Up ›

GBA18V-40 4.0Ah · 72Wh 0.6kg 3.2kg from £73.99at Machine Mart + £4.99 delivery View at Machine Mart ›

EXBA18V-40 4.0Ah · 72Wh 0.61kg 3.21kg No retailer price yet About this battery ›

GBA18V-50 5.0Ah · 90Wh 0.62kg 3.22kg from £85.00at Machine Mart + £4.99 delivery View at Machine Mart ›

PROCORE18V-55 5.5Ah · 99Wh 0.96kg 3.56kg No retailer price yet About this battery ›

EXBA18V-55 5.5Ah · 99Wh 1.02kg 3.62kg from £157.95at Tooled Up + £6.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.
