GCM 305-254 D Mitre Saw

£639.95at Tooled Up · + £8.95 delivery · Available to order

View at Tooled Up › We may earn a commission

‹ Mitre Saws

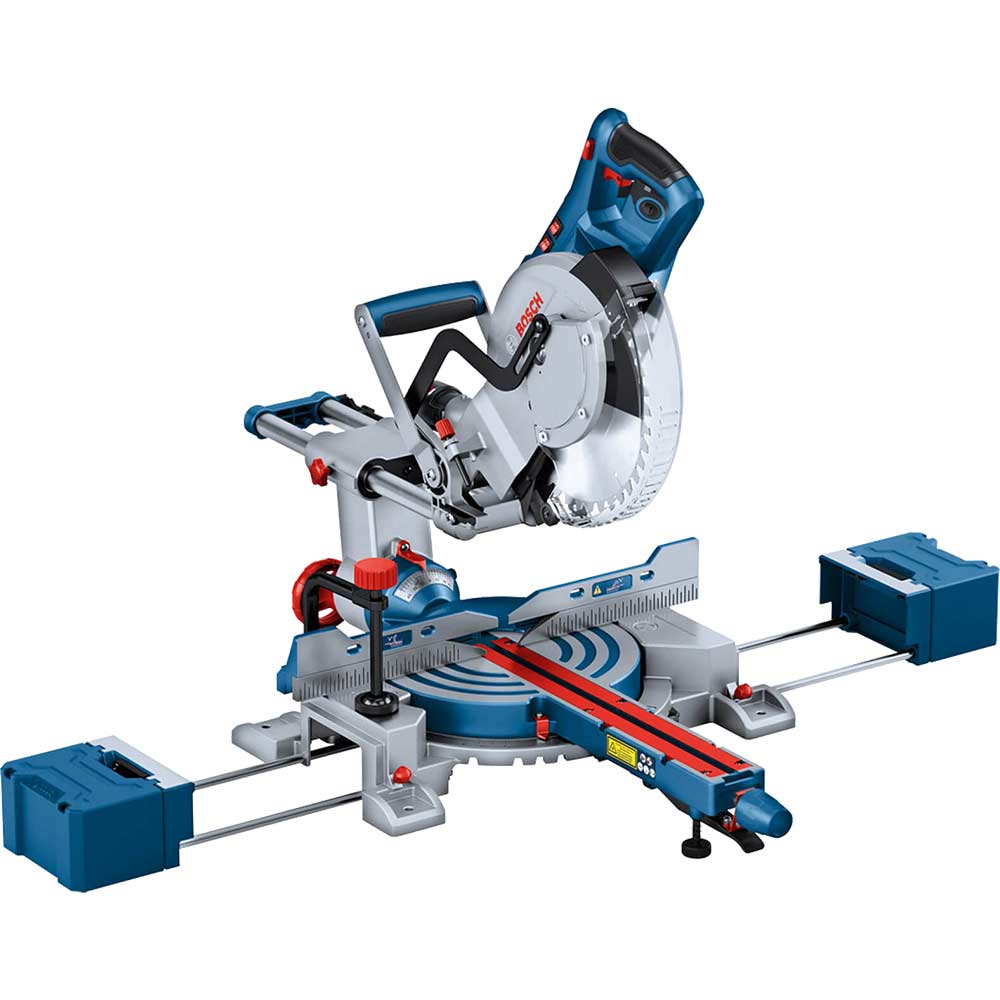

Bosch GCM 305-254 D 240V 1500W 254mm Dual-Bevel Sliding Mitre Saw

Compare it with

vsEinhell TE-SM 10 L Dual

vsMakita LS0815FLN

vsDeWalt DWS777

vsHiKOKI C12RSH2

PowerMains, 240V

Warranty3 years (with registration)The terms ›

SpecsFrom Bosch's own documentationChecked 13 Jun 2026

Mitre Saws

Bosch GCM 305-254 D 240V 1500W 254mm Dual-Bevel Sliding Mitre Saw

Name: Bosch GCM 305-254 D 240V 1500W 254mm Dual-Bevel Sliding Mitre Saw
Brand: Bosch
SKU: GCM 305-254 D
Availability: InStock

19.8kg240V3 years (with registration)

Corded 240V 1500W 254mm dual-bevel sliding mitre saw. 305 × 90mm crosscut at 90°. 48° mitre both ways, 47° dual bevel. Laser guide. 19.8kg. Mains tool.

Adds it to My Tools, kept on this device

Lowest price we track

£639.95at Tooled Up · + £8.95 delivery · Available to order

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£639.95 + £8.95 delivery · Available to order£648.90View ›

My Tool Shed£639.95 + £8.95 delivery · Available to order£648.90View ›

Machine Mart£649.00 + £4.99 delivery£653.99View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

254mm

Blade

305 × 90mm

Crosscut (90°)

48° L / 48° R

Mitre range

19.8kg

Weight

Where it sits among 254mm mitre saws

Scaled against the 5 mitre saws with a 254mm blade we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Weight19.8kg

13.8kg lightestEinhell TE-SM 36/10 L Liheaviest 19.8kgThis one

Max cut width (90°)305mm

305mm lowestThis onehighest 340mmEinhell TE-SM 36/10 L Li

Max cut height (90°)90mm

85mm lowestEinhell TE-SM 36/10 L Lihighest 90mmThis one

Max bevel angle47°

45° lowestEinhell TE-SM 36/10 L Lihighest 47°This one

Compare it with: + Einhell TE-SM 10 L Dual + Makita LS0815FLN + DeWalt DWS777 + HiKOKI C12RSH2

Full specs

From Bosch's own documentation. Checked 13/06/2026. Report a spec error ›

Cutting Capacity

Crosscut at 90°305 × 90mm

Crosscut at 45° mitre215 × 90mm

Crosscut at 45° bevel305 × 55mm

Cut-line guideLaser

Country of originChina

Blade

Blade diameter254 mm

Blade bore30 mm

Power & Motor

Voltage240V

Power input1,500 W

No-load speed4,500 rpm

Ranges & Type

Sliding head✓ Yes

Rail designSliding rail (rear clearance)

Mitre range48° L / 48° R

Bevel range47° L / 47° R

Bevel typeDual bevel

Dust Extraction

Dust bag included✓ Yes

Extractor auto-startYes, plugged into an auto-start extractor

Physical & Build

Weight19.8 kg

Noise level88 dB(A) LpA / 101 dB(A) LwA

The verdictOur take

The GCM 305-254 D is Bosch's 254mm dual-bevel slide, a no-frills saw cutting 305 × 90mm at 90° with a laser, at 19.8kg. It keeps things simple with no brake or soft start, but the 90mm vertical capacity is generous for skirting cut on edge. We rate it strong on capacity; the glide-arm GCM 12 GDL is the step up for more reach and wall clearance, and the cordless GCM 18V-254 is the battery equivalent.
