DCH416 SDS+ Hammer Drill

£499.95at Tooled Up · + £6.95 delivery · Available to order

View at Tooled Up › We may earn a commission

‹ SDS+ Hammer Drills

18V/54V FlexVolt · Brushless DeWalt DCH416NT-XJ 54V XR FlexVolt Brushless SDS+ Rotary Hammer (Body Only, TSTAK)

SDS+ Hammer Drills · DeWalt 18V/54V FlexVolt

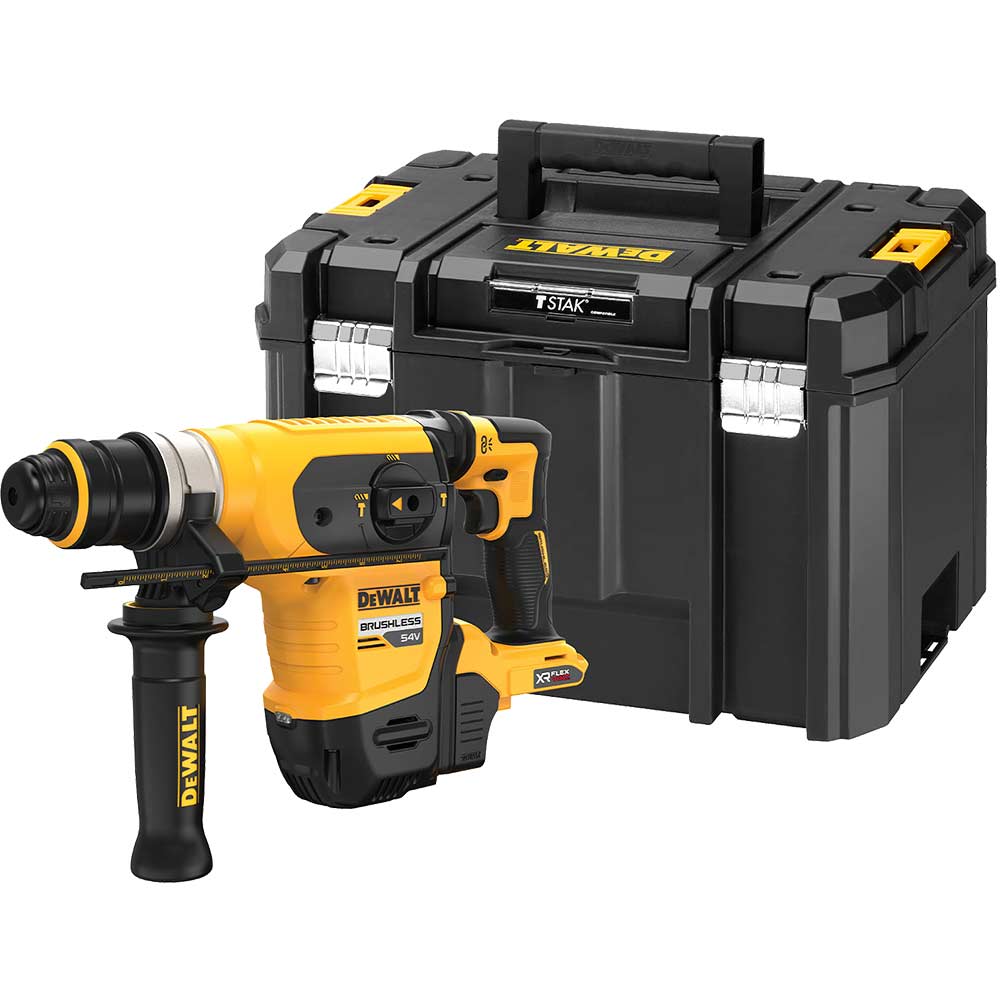

DeWalt DCH416NT-XJ 54V XR FlexVolt Brushless SDS+ Rotary Hammer (Body Only, TSTAK)

Name: DeWalt DCH416NT-XJ 54V XR FlexVolt Brushless SDS+ Rotary Hammer (Body Only, TSTAK)
Brand: DeWalt
SKU: DCH416NT-XJ
Availability: BackOrder

4.1kg bare54V3 years (with registration)

54V XR FlexVolt brushless SDS+ rotary hammer rated at 4.5J for holes from 10 to 32mm in concrete. Three modes, anti-rotation, active vibration control and Wireless Tool Control.

Adds it to My Tools, kept on this device

Lowest price we track

£499.95at Tooled Up · + £6.95 delivery · Available to order

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£499.95 + £6.95 delivery · Available to order£506.90View ›

My Tool Shed£499.95 + £6.95 delivery · Available to order£506.90View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

4.5J

Impact energy

32mm

Max hole, concrete

4,200bpm

Impact rate

4.1kg

Weight (bare)

Where it sits among sds+ hammer drills

Against the 124 sds+ hammer drills we list. Not a score: bigger isn't always better for your job.

Impact energy4.5J

1J lowestMakita HR140Dhighest 5.8JBosch GBH 18V-34 CF

Max hole, concrete32mm

12mm lowestEinhell TE-HD 18/12 Lihighest 35mmHiKOKI DH3635DC

Impacts per minute4,200

2,900 lowestBosch GBH 18V-34 CFhighest 6,000Einhell TE-HD 18/12 Li

Weight (bare)4.1kg

1.5kg lightestEinhell TE-HD 18/12 Liheaviest 6.1kgEinhell RT-RH 32

Compare it with: + Bosch GBH 18V-24 C + Makita DHR281 + Milwaukee M18 ONEFHPX + Einhell TC-RH 620 4F

Full specs

From DeWalt's own documentation. Checked 03/10/2026. Report a spec error ›

Hammer & Drilling

Chuck systemSDS+

Impact energy4.5 J

Measured to EPTA✓ Yes

Impact rate4,200 bpm

No-load speed0–725

Max hole, concrete32 mm

Best range, concrete10–24mm

Max core cutter127 mm

Max hole, wood32 mm

Max hole, steel13 mm

Power & Motor

Voltage54V

MotorBrushless

Dust & Extraction

Extractor auto-startYes (built into tool)

Auto-start systemDeWalt Wireless Tool Control (WTC)

Modes & Handling

ModesRotary drilling / Rotary hammering / Hammering only

Chisel only✓ Yes

Drill only (no hammer)✓ Yes

Anti-vibration✓ Yes

Anti-vibration systemActive Vibration Control (AVC)

Electronic anti-rotation✓ Yes

Anti-rotation systemAnti-rotation system

Safety clutch✓ Yes

Physical & Build

Weight (bare)4.1 kg

Weight (with battery)5.18 kg

LED work light✓ Yes

Case typeTSTAK

Case included✓ Yes

Noise level96 dB(A) LpA / 104 dB(A) LwA

Vibration (hammer drilling)8.0 m/s²

Vibration (chiselling)6.7 m/s²

Powered by DeWalt 18V/54V FlexVolt · 4

All 4 batteries that fit this tool, smallest first. Kits and chargers ›

DCB546 6.0Ah · 108Wh 1.08kg 5.18kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB547 9.0Ah · 162Wh 1.46kg 5.56kg from £119.95at Tooled Up + £6.95 delivery View at Tooled Up ›

DCB548 12.0Ah · 216Wh 1.46kg 5.56kg from £229.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB549 15.0Ah · 270Wh 2.12kg 6.22kg from £259.95at Tooled Up + £5.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
