DCH614 SDS Max Hammer Drill

£639.95Body only · at Tooled Up · Free delivery · Available to order

View at Tooled Up › We may earn a commission

‹ SDS Max Hammer Drills

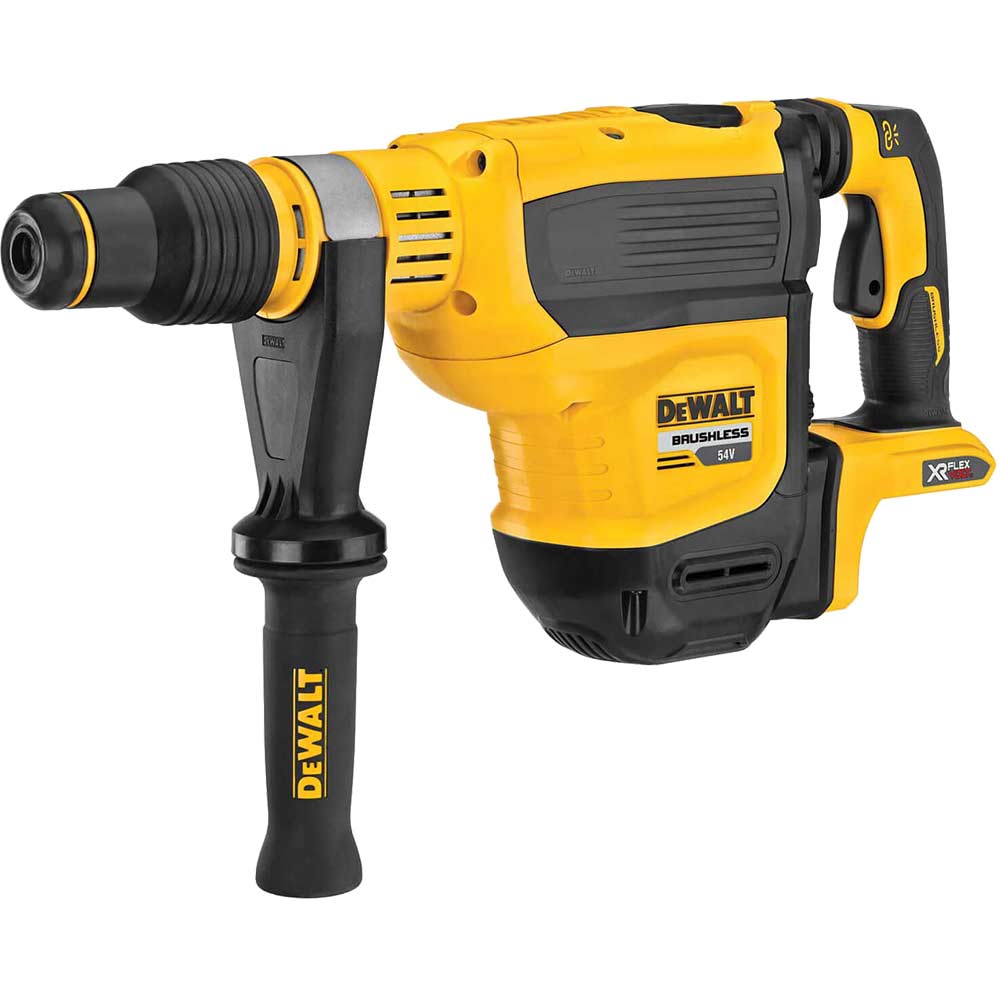

18V/54V FlexVolt · Brushless DeWalt DCH614N-XJ 54V XR FlexVolt Brushless SDS Max Combination Hammer (Body Only)

SDS Max Hammer Drills · DeWalt 18V/54V FlexVolt

DeWalt DCH614N-XJ 54V XR FlexVolt Brushless SDS Max Combination Hammer (Body Only)

Name: DeWalt DCH614N-XJ 54V XR FlexVolt Brushless SDS Max Combination Hammer (Body Only)
Brand: DeWalt
SKU: DCH614N-XJ
Availability: InStock

6.8kg bare54V3 years (with registration)

54V FlexVolt SDS Max combination hammer for holes up to 45mm in concrete and core bits to 125mm. Rotation stop for chiselling, 18 chisel positions, anti-rotation and active vibration control.

Adds it to My Tools, kept on this device

How do you want it?2 ways to buy · tap one to see what's in the box

Lowest price we track

£639.95at Tooled Up · Free delivery · Available to order

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£639.95, free delivery · Available to order£639.95View ›

My Tool Shed£639.95, free delivery · Available to order£639.95View ›

Machine Mart£659.00 + £4.99 delivery£663.99View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

10.5J

Impact energy

45mm

Max hole, concrete

2,900bpm

Impact rate

6.8kg

Weight (bare)

Where it sits among sds max hammer drills

Against the 56 sds max hammer drills we list. Not a score: bigger isn't always better for your job.

Impact energy10.5J

5.6J lowestMakita HR3540Chighest 21.4JMakita HR006G

Max hole, concrete45mm

35mm lowestMakita HR3540Chighest 52mmHiKOKI DH52ME

Impacts per minute2,900

2,100 lowestBosch GBH 12-52 DVhighest 4,100Einhell TE-RH 38 3F

Weight (bare)6.8kg

5.2kg lightestMakita HR3540Cheaviest 11.9kgBosch GBH 12-52 DV

Compare it with: + HiKOKI DH52ME + Milwaukee M18 FHACO745 + Bosch GBH18V-40 + Makita HR3540C

Full specs

From DeWalt's own documentation. Checked 03/10/2026. Report a spec error ›

Hammer & Drilling

Chuck systemSDS Max

Impact energy10.5 J

Measured to EPTA✓ Yes

Impact rate2,900 bpm

No-load speed190–380

Max hole, concrete45 mm

Best range, concrete16–32mm

Max core cutter125 mm

Power & Motor

Voltage54V

MotorBrushless

Physical & Build

Weight (bare)6.8 kg

Weight (with battery)7.88 kg

Noise level93 dB(A) LpA / 104 dB(A) LwA

Vibration (hammer drilling)8.8 m/s²

Vibration (chiselling)8.1 m/s²

Modes & Handling

ModesRotary hammering / Hammering only / Chisel position adjust (18 positions)

Chisel only✓ Yes

Chisel position lock✓ Yes

Reduced or variable impact✓ Yes

BodyL-shape

Anti-vibration✓ Yes

Anti-vibration systemActive Vibration Control (AVC)

Electronic anti-rotation✓ Yes

Anti-rotation systemAnti-rotation system

Safety clutch✓ Yes

Soft start✓ Yes

Dust & Extraction

Extractor auto-startYes (built into tool)

Auto-start systemDeWalt Wireless Tool Control (WTC)

Powered by DeWalt 18V/54V FlexVolt · 4

All 4 batteries that fit this tool, smallest first. Kits and chargers ›

DCB546 6.0Ah · 108Wh 1.08kg 7.88kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB547 9.0Ah · 162Wh 1.46kg 8.26kg from £119.95at Tooled Up + £6.95 delivery View at Tooled Up ›

DCB548 12.0Ah · 216Wh 1.46kg 8.26kg from £229.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB549 15.0Ah · 270Wh 2.12kg 8.92kg from £259.95at Tooled Up + £5.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
