18V/54V FlexVolt DeWalt DCH735N-XJ 54V XR FlexVolt SDS Max Combination Hammer (Body Only, Carry Case)

SDS Max Hammer Drills · DeWalt 18V/54V FlexVolt

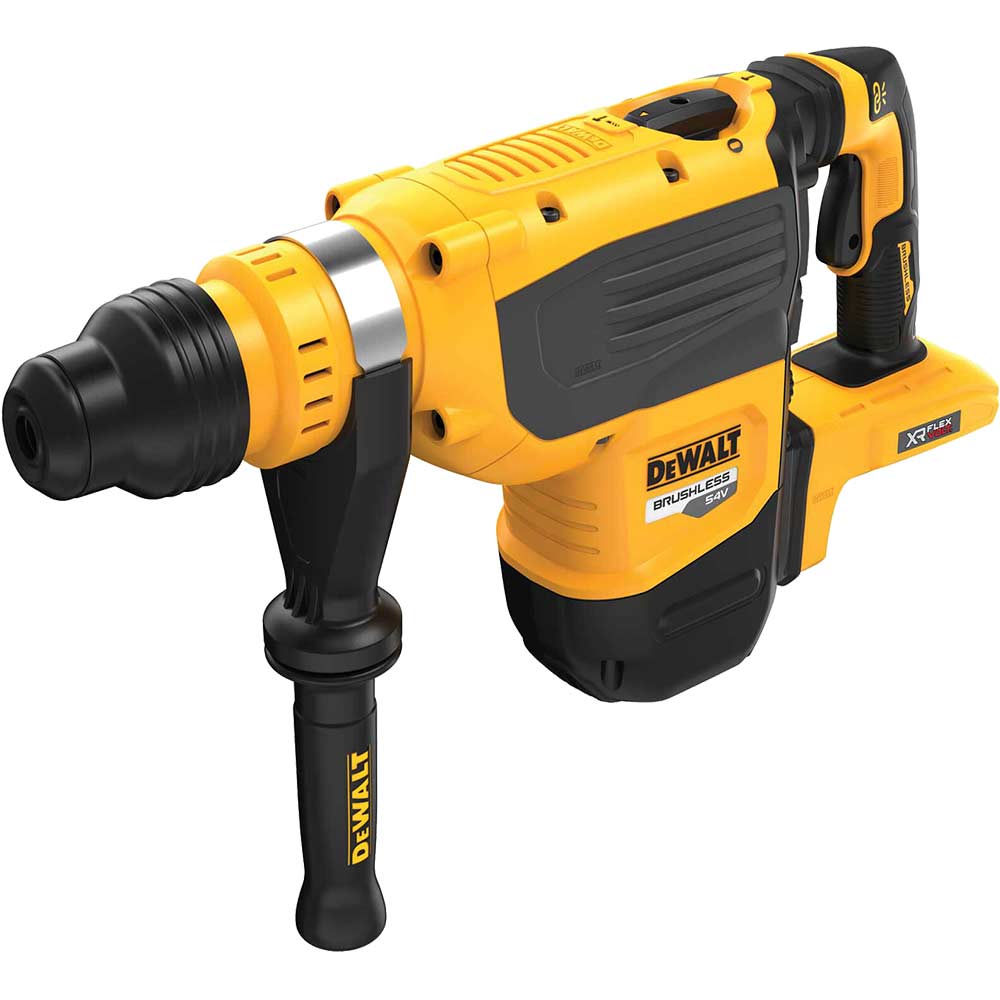

DeWalt DCH735N-XJ 54V XR FlexVolt SDS Max Combination Hammer (Body Only, Carry Case)

Name: DeWalt DCH735N-XJ 54V XR FlexVolt SDS Max Combination Hammer (Body Only, Carry Case)
Brand: DeWalt
SKU: DCH735N-XJ
Availability: BackOrder

8.5kg bare54V3 years (with registration)

54V FlexVolt SDS Max combination hammer for holes up to 48mm in concrete and core bits to 125mm. Speed and impact dial, 24 chisel positions, anti-rotation and active vibration control.

Adds it to My Tools, kept on this device

Lowest price we track

£819.95at Tooled Up · Free delivery · Available to order

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£819.95, free delivery · Available to order£819.95View ›

My Tool Shed£819.95, free delivery · Available to order£819.95View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

13.3J

Impact energy

48mm

Max hole, concrete

2,705bpm

Impact rate

8.5kg

Weight (bare)

Where it sits among sds max hammer drills

Against the 56 sds max hammer drills we list. Not a score: bigger isn't always better for your job.

Impact energy13.3J

5.6J lowestMakita HR3540Chighest 21.4JMakita HR006G

Max hole, concrete48mm

35mm lowestMakita HR3540Chighest 52mmHiKOKI DH52ME

Impacts per minute2,705

2,100 lowestBosch GBH 12-52 DVhighest 4,100Einhell TE-RH 38 3F

Weight (bare)8.5kg

5.2kg lightestMakita HR3540Cheaviest 11.9kgBosch GBH 12-52 DV

Compare it with: + Milwaukee K 545 S + Bosch GBH18V-36 + Makita HR3541FC + HiKOKI DH52MA

Full specs

From DeWalt's own documentation. Checked 03/10/2026. Report a spec error ›

Hammer & Drilling

Chuck systemSDS Max

Impact energy13.3 J

Measured to EPTA✓ Yes

Impact rate2,705 bpm

No-load speed177–355

Max hole, concrete48 mm

Best range, concrete25–38mm

Max core cutter125 mm

Voltage54V

Physical & Build

Weight (bare)8.5 kg

Weight (with battery)9.58 kg

Case typeCarry case

Case included✓ Yes

Noise level97 dB(A) LpA / 108 dB(A) LwA

Vibration (hammer drilling)9.0 m/s²

Vibration (chiselling)8.8 m/s²

Modes & Handling

ModesRotary hammering / Hammering only / Bit adjustment (24 positions)

Chisel only✓ Yes

Chisel position lock✓ Yes

Reduced or variable impact✓ Yes

BodyL-shape

Anti-vibration✓ Yes

Anti-vibration systemActive Vibration Control (AVC)

Electronic anti-rotation✓ Yes

Anti-rotation systemAnti-rotation system

Safety clutch✓ Yes

Soft start✓ Yes

Dust & Extraction

Extractor auto-startYes (built into tool)

Auto-start systemDeWalt Wireless Tool Control (WTC)

Powered by DeWalt 18V/54V FlexVolt · 4

All 4 batteries that fit this tool, smallest first. Kits and chargers ›

DCB546 6.0Ah · 108Wh 1.08kg 9.58kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB547 9.0Ah · 162Wh 1.46kg 9.96kg from £119.95at Tooled Up + £6.95 delivery View at Tooled Up ›

DCB548 12.0Ah · 216Wh 1.46kg 9.96kg from £229.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB549 15.0Ah · 270Wh 2.12kg 10.62kg from £259.95at Tooled Up + £5.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
