18V/54V FlexVolt · Brushless DeWalt DCH775N-XJ 54V XR FlexVolt Brushless SDS Max Combination Hammer (Body Only, Carry Case)

SDS Max Hammer Drills · DeWalt 18V/54V FlexVolt

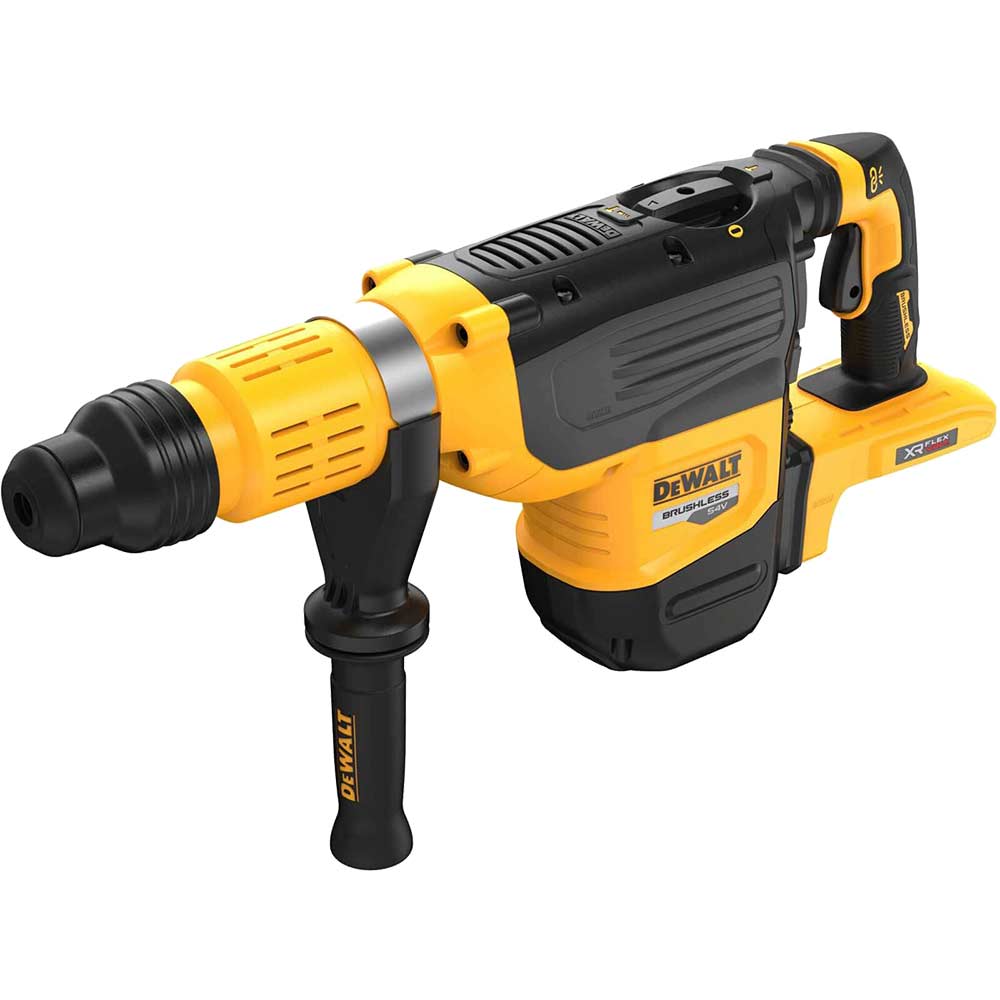

DeWalt DCH775N-XJ 54V XR FlexVolt Brushless SDS Max Combination Hammer (Body Only, Carry Case)

Name: DeWalt DCH775N-XJ 54V XR FlexVolt Brushless SDS Max Combination Hammer (Body Only, Carry Case)
Brand: DeWalt
SKU: DCH775N-XJ
Availability: InStock

9.4kg bare54V3 years (with registration)

54V FlexVolt SDS Max combination hammer for holes up to 52mm in concrete and core bits to 150mm. Speed and impact dial, rotation stop, anti-rotation and active vibration control.

Adds it to My Tools, kept on this device

Lowest price we track

£849.95at Tooled Up · Free delivery

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£849.95, free delivery£849.95View ›

My Tool Shed£849.95, free delivery£849.95View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

19.4J

Impact energy

52mm

Max hole, concrete

2,210bpm

Impact rate

9.4kg

Weight (bare)

Where it sits among sds max hammer drills

Against the 56 sds max hammer drills we list. Not a score: bigger isn't always better for your job.

Impact energy19.4J

5.6J lowestMakita HR3540Chighest 21.4JMakita HR006G

Max hole, concrete52mm

35mm lowestMakita HR3540Chighest 52mmThis one

Impacts per minute2,210

2,100 lowestBosch GBH 12-52 DVhighest 4,100Einhell TE-RH 38 3F

Weight (bare)9.4kg

5.2kg lightestMakita HR3540Cheaviest 11.9kgBosch GBH 12-52 DV

Compare it with: + Makita DHR400 + Bosch GBH 8-45 D + HiKOKI DH3640DA + Milwaukee M18 FHACO540

Full specs

From DeWalt's own documentation. Checked 03/10/2026. Report a spec error ›

Hammer & Drilling

Chuck systemSDS Max

Impact energy19.4 J

Measured to EPTA✓ Yes

Impact rate2,210 bpm

No-load speed145–290

Max hole, concrete52 mm

Best range, concrete28–42mm

Max core cutter150 mm

Power & Motor

Voltage54V

MotorBrushless

Physical & Build

Weight (bare)9.4 kg

Weight (with battery)10.48 kg

Case typeCarry case

Case included✓ Yes

Noise level96 dB(A) LpA / 107 dB(A) LwA

Vibration (hammer drilling)10.1 m/s²

Vibration (chiselling)9.4 m/s²

Modes & Handling

ModesRotary hammering / Hammering only / Bit adjustment (24 positions)

Chisel only✓ Yes

Chisel position lock✓ Yes

Reduced or variable impact✓ Yes

BodyL-shape

Anti-vibration✓ Yes

Anti-vibration systemActive Vibration Control (AVC)

Electronic anti-rotation✓ Yes

Anti-rotation systemAnti-rotation system

Safety clutch✓ Yes

Soft start✓ Yes

Dust & Extraction

Extractor auto-startYes (built into tool)

Auto-start systemDeWalt Wireless Tool Control (WTC)

Powered by DeWalt 18V/54V FlexVolt · 4

All 4 batteries that fit this tool, smallest first. Kits and chargers ›

DCB546 6.0Ah · 108Wh 1.08kg 10.48kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB547 9.0Ah · 162Wh 1.46kg 10.86kg from £119.95at Tooled Up + £6.95 delivery View at Tooled Up ›

DCB548 12.0Ah · 216Wh 1.46kg 10.86kg from £229.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB549 15.0Ah · 270Wh 2.12kg 11.52kg from £259.95at Tooled Up + £5.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
