DWS777 Mitre Saw

£399.00at Machine Mart · + £4.99 delivery

View at Machine Mart › We may earn a commission

‹ Mitre Saws

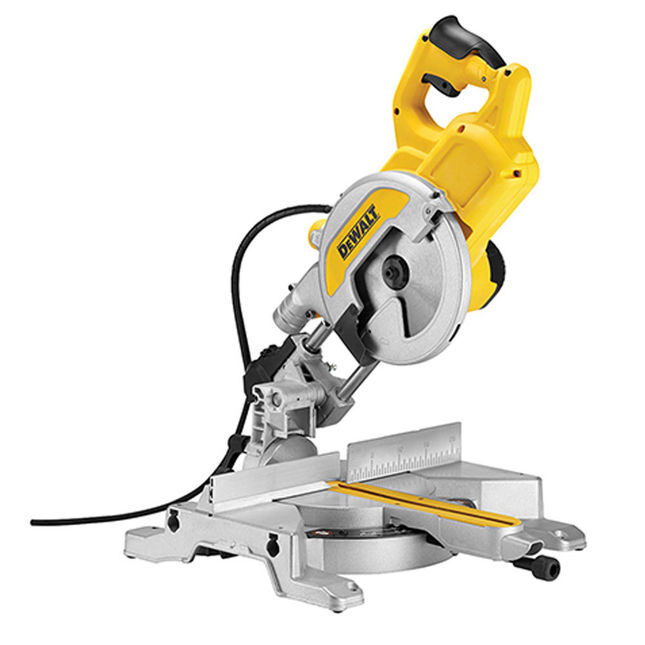

DeWalt DWS777-LX 110V 1600W 216mm Single-Bevel XPS Sliding Compound Mitre Saw

Compare it with

vsFestool KS 60 E

vsBosch GCM 8 SJL

vsHiKOKI C8FSE

vsMakita LS0816F

PowerMains, 110V

Warranty3 years (with registration)The terms ›

SpecsFrom DeWalt's own documentationChecked 13 Jun 2026

Mitre Saws

DeWalt DWS777-LX 110V 1600W 216mm Single-Bevel XPS Sliding Compound Mitre Saw

Name: DeWalt DWS777-LX 110V 1600W 216mm Single-Bevel XPS Sliding Compound Mitre Saw
Brand: DeWalt
SKU: DWS777-LX
Availability: InStock

14kg110V3 years (with registration)

Corded 110V 1600W 216mm single-bevel sliding compound mitre saw for site transformers. 270 × 62mm crosscut at 90°. 50° mitre both ways, 48° bevel. XPS LED shadow-line cut guide. 14kg. Mains tool.

Adds it to My Tools, kept on this device

Lowest price we track

£399.00at Machine Mart · + £4.99 delivery

View at Machine Mart ›

Prices from UK retailer feeds, updated daily.We may earn a commission

216mm

Blade

270 × 62mm

Crosscut (90°)

50° L / 50° R

Mitre range

14kg

Weight

Where it sits among 216mm mitre saws

Scaled against the 23 mitre saws with a 216mm blade we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Weight14kg

11.23kg lightestEinhell TE-SM 36/8 L Liheaviest 18.9kgBosch GCM 8 SDE

Max cut width (90°)270mm

250mm lowestDeWalt DWS774highest 312mmBosch GCM 8 SDE

Max cut height (90°)62mm

60mm lowestFestool KSC 60 EBhighest 70mmBosch GCM 305-216 D

Max bevel angle48°

45° lowestEinhell TE-SM 36/8 L Lihighest 48°This one

Compare it with: + Festool KS 60 E + Bosch GCM 8 SJL + HiKOKI C8FSE + Makita LS0816F

Full specs

From DeWalt's own documentation. Checked 13/06/2026. Report a spec error ›

Cutting Capacity

Crosscut at 90°270 × 62mm

Crosscut at 45° mitre190 × 62mm

Crosscut at 45° bevel270 × 48mm

Crosscut compound 45°/45°190 × 48mm

Cut-line guideLED Shadow Line

Blade

Blade diameter216 mm

Blade bore30 mm

Blade teeth24

Ranges & Type

Sliding head✓ Yes

Rail designSliding rail (rear clearance)

Mitre range50° L / 50° R

Bevel range48°

Bevel typeSingle bevel

Power & Motor

Voltage110V

Power input1,600 W

No-load speed6,300 rpm

Dust Extraction

Dust bag included✓ Yes

Dust port sizeAirLock

Extractor hose✓ Fits DeWalt AirLock extractor hoses directly (6 extractors listed)

Extractor auto-startYes, plugged into an auto-start extractor

Physical & Build

Weight14 kg

LED work light✓ Yes

Noise level96 dB(A) LpA / 107 dB(A) LwA

Vibration2.1 m/s²

The verdictOur take

This is the 110V site version of the DWS777 216mm single-bevel slide, cutting 270 × 62mm at 90° at 14kg with the XPS shadow line, at 96 dB(A). It is single bevel with no depth stop. We rate it the strongest of DeWalt's compact 110V 216mm saws; for dual bevel or larger capacity, step up to the 250mm DWS778 or DWS727.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
