DJV184 Jigsaw

£149.00at Machine Mart · + £4.99 delivery

View at Machine Mart › We may earn a commission

‹ Jigsaws

18V LXT · Brushless Makita DJV184Z 18V LXT Brushless Top Handle Jigsaw (Body Only)

Jigsaws · Makita 18V LXT

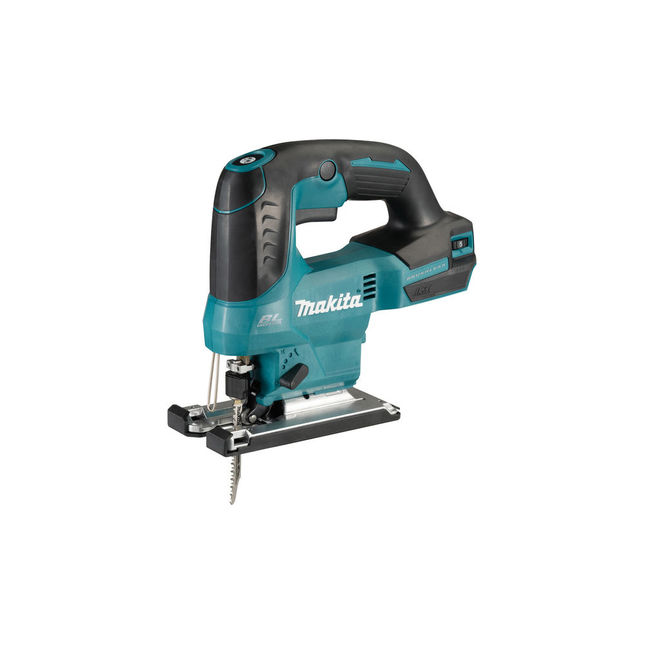

Makita DJV184Z 18V LXT Brushless Top Handle Jigsaw (Body Only)

Name: Makita DJV184Z 18V LXT Brushless Top Handle Jigsaw (Body Only)
Brand: Makita
SKU: DJV184Z
Availability: InStock

1.7kg bare18V3 years (with registration)

Makita DJV184 18V LXT brushless top-handle jigsaw: 135mm in wood, 10mm in steel, 23mm stroke, speed dial to 3,000 spm. Body only.

Adds it to My Tools, kept on this device

Lowest price we track

£149.00at Machine Mart · + £4.99 delivery

View at Machine Mart ›

Compare retailersTotal with delivery

Machine Mart Lowest£149.00 + £4.99 delivery£153.99View ›

Tooled Up£153.95 + £5.95 delivery · Available to order£159.90View ›

My Tool Shed£153.95 + £5.95 delivery · Available to order£159.90View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

135mm

Max cut, wood

10mm

Max cut, steel

23mm

Stroke length

3,000spm

Stroke rate

Where it sits among jigsaws

Against the 67 jigsaws we list. Not a score: bigger isn't always better for your job.

Max cut, wood135mm

40mm lowestFestool PSC-E 18highest 160mmHiKOKI CJ36DA

Max cut, mild steel10mm

2mm lowestMakita JV101Dhighest 12mmEinhell TE-JS 18/100 Li

Max stroke rate3,000spm

2,400spm lowestEinhell TE-JS 18/80 Lihighest 3,800spmFestool PSBC 500

Weight (bare)1.7kg

1.3kg lightestBosch Green EasySaw 18V-70heaviest 2.7kgHiKOKI CJ160V

Compare it with: + Einhell TP-JS 18/135 Li BL + Festool PSC 500 + Bosch GST 18V-LI B + Bosch Green AdvancedSaw 18V-140

Full specs

From Makita's own documentation. Checked 03/10/2026. Report a spec error ›

Cutting

Max cut, wood135 mm

Max cut, aluminium20 mm

Max cut, mild steel10 mm

Stroke length23 mm

Max stroke rate3,000 spm

Orbital settings3 + off

Bevel angles0–45° L/R

HandleTop handle

Power & Motor

Voltage18V

MotorBrushless

Dust & Extraction

Dust port size23 / 28 mm

Extractor hoseOther extractor hoses: check the adaptor fits this port

Extractor auto-startNo

Physical & Build

Weight (bare)1.7 kg

Weight (with battery)2.34 kg

LED work light✓ Yes

Noise level85 dB(A) LpA / 93 dB(A) LwA

Vibration (cutting wood)7.4 m/s²

Vibration (cutting metal)5.1 m/s²

The verdictOur take

The DJV184 is Makita's compact brushless 18V top-handle jigsaw, 1.7kg bare and 2.1–2.4kg with a battery, lighter than the DJV182's 2.4–2.7kg. It keeps the 135mm wood depth but has a shorter 23mm stroke and a lower 3,000 spm top speed than the DJV182. Makita gives it 85 dB(A) LpA, level with the DJV186 as the quietest of its LXT jigsaws.

Powered by Makita 18V LXT · 7

All 7 batteries that fit this tool, smallest first. Kits and chargers ›

BL1820B 2.0Ah · 36Wh 0.38kg 2.08kg from £49.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1830B 3.0Ah · 54Wh 0.64kg 2.34kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1840B 4.0Ah · 72Wh 0.64kg 2.34kg from £69.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1850B 5.0Ah · 90Wh 0.63kg 2.33kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1860B 6.0Ah · 108Wh 0.66kg 2.36kg from £79.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1890 9.0Ah · 162Wh 0.97kg 2.67kg from £119.98at Machine Mart + £4.99 delivery View at Machine Mart ›

BL18120 12.0Ah · 216Wh 1.3kg 3.0kg from £129.95at Tooled Up + £6.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.
