18V Twin (36V) · Brushless Makita DLS714NZ 36V (2× 18V LXT) 190mm Slide Compound Mitre Saw (Body Only)

Mitre Saws · Makita 18V Twin (36V)

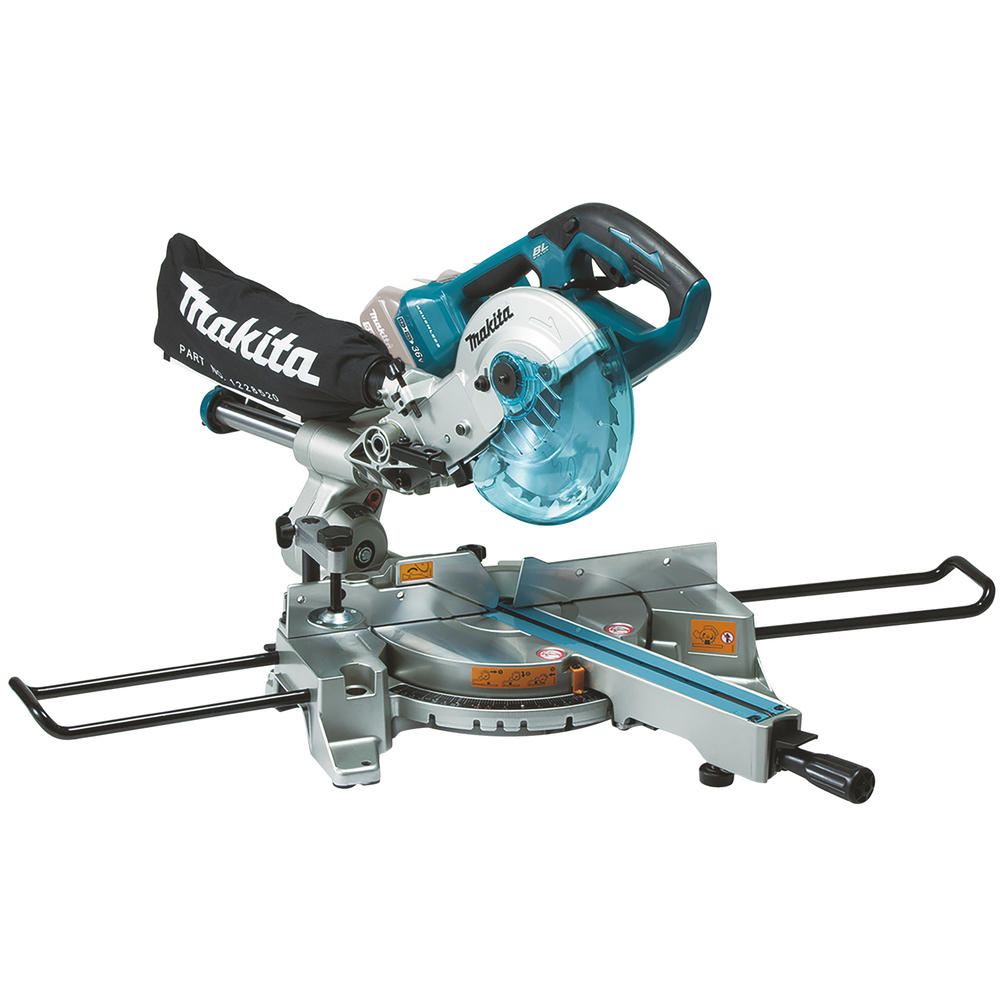

Makita DLS714NZ 36V (2× 18V LXT) 190mm Slide Compound Mitre Saw (Body Only)

Name: Makita DLS714NZ 36V (2× 18V LXT) 190mm Slide Compound Mitre Saw (Body Only)
Brand: Makita
SKU: DLS714NZ
Availability: BackOrder

13kg bare36V (2× 18V LXT)3 years (with registration)

36V (2x18V LXT) brushless 190mm single-bevel slide compound mitre saw. 300 × 52mm crosscut at 90°. 47° L / 57° R mitre, 45° bevel. No cut-line guide. Compact at 13kg bare. Body only.

Adds it to My Tools, kept on this device

Lowest price we track

£689.95at Tooled Up · Free delivery · Available to order

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£689.95, free delivery · Available to order£689.95View ›

My Tool Shed£689.95, free delivery · Available to order£689.95View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

190mm

Blade

300 × 52mm

Crosscut (90°)

47° L / 57° R

Mitre range

13kg

Weight (bare)

Where it sits among 190mm mitre saws

Scaled against the 5 mitre saws with a 190mm blade we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Weight (bare)13kg

13kg lightestThis oneheaviest 14.6kgMakita LS0714LN

Compare it with: + Einhell TE-SM 36/10 L Li + HiKOKI C3610DRA + DeWalt DCS727 + Bosch GCM 12 GDL

Full specs

From Makita's own documentation. Checked 13/06/2026. Report a spec error ›

Cutting Capacity

Crosscut at 90°300 × 52mm

Crosscut at 45° mitre212 × 52mm

Crosscut at 45° bevel300 × 40mm

Blade

Blade diameter190 mm

Blade bore20 mm

Power & Motor

Voltage36V (2× 18V LXT)

MotorBrushless

No-load speed5,700 rpm

Physical & Build

Weight (bare)13 kg

Weight (with battery)14.28 kg

Noise level88 dB(A) LpA / 97 dB(A) LwA

Vibration2.5 m/s²

Ranges & Type

Sliding head✓ Yes

Rail designSliding rail (rear clearance)

Mitre range47° L / 57° R

Bevel range45° L / 5° R

Bevel typeSingle bevel

Features

Cut-line guideNone

Electronic blade brake✓ Yes

Soft start✓ Yes

Dust Extraction

Dust bag included✓ Yes

Dust port size32mm inner / 37mm outer

Extractor hoseOther extractor hoses: check the adaptor fits this port

Extractor auto-startNo

The verdictOur take

The DLS714 is a compact cordless 190mm single-bevel slide running Makita's twin-18V LXT system for 36V performance, a light saw at 13.0kg bare, cutting 300 × 52mm at 90° with a brake and soft start, and a quiet 88 dB(A). It has no cut-line guide and a modest depth capacity, so it is built for portable trim work. We rate it a good grab-and-go saw for LXT owners; for bigger cordless capacity step up to the DXT DLS110 or the 40V XGT LS002G.

Powered by Makita 18V Twin (36V) · 7

All 7 batteries that fit this tool, smallest first.

BL1820B 2.0Ah · 36Wh 0.38kg 13.76kg from £49.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1830B 3.0Ah · 54Wh 0.64kg 14.28kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1840B 4.0Ah · 72Wh 0.64kg 14.28kg from £69.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1850B 5.0Ah · 90Wh 0.63kg 14.26kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1860B 6.0Ah · 108Wh 0.66kg 14.32kg from £79.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1890 9.0Ah · 162Wh 0.97kg 14.94kg from £119.98at Machine Mart + £4.99 delivery View at Machine Mart ›

BL18120 12.0Ah · 216Wh 1.3kg 15.6kg from £129.95at Tooled Up + £6.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. It takes two batteries, so each figure includes two packs. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.
