HR005G SDS Max Hammer Drill

£759.00Body only · at Machine Mart · + £4.99 delivery

View at Machine Mart › We may earn a commission

‹ SDS Max Hammer Drills

40V XGT · Brushless Makita HR005GZ01 40V Max XGT Brushless SDS Max Rotary Hammer (Body Only, Carry Case)

SDS Max Hammer Drills · Makita 40V XGT

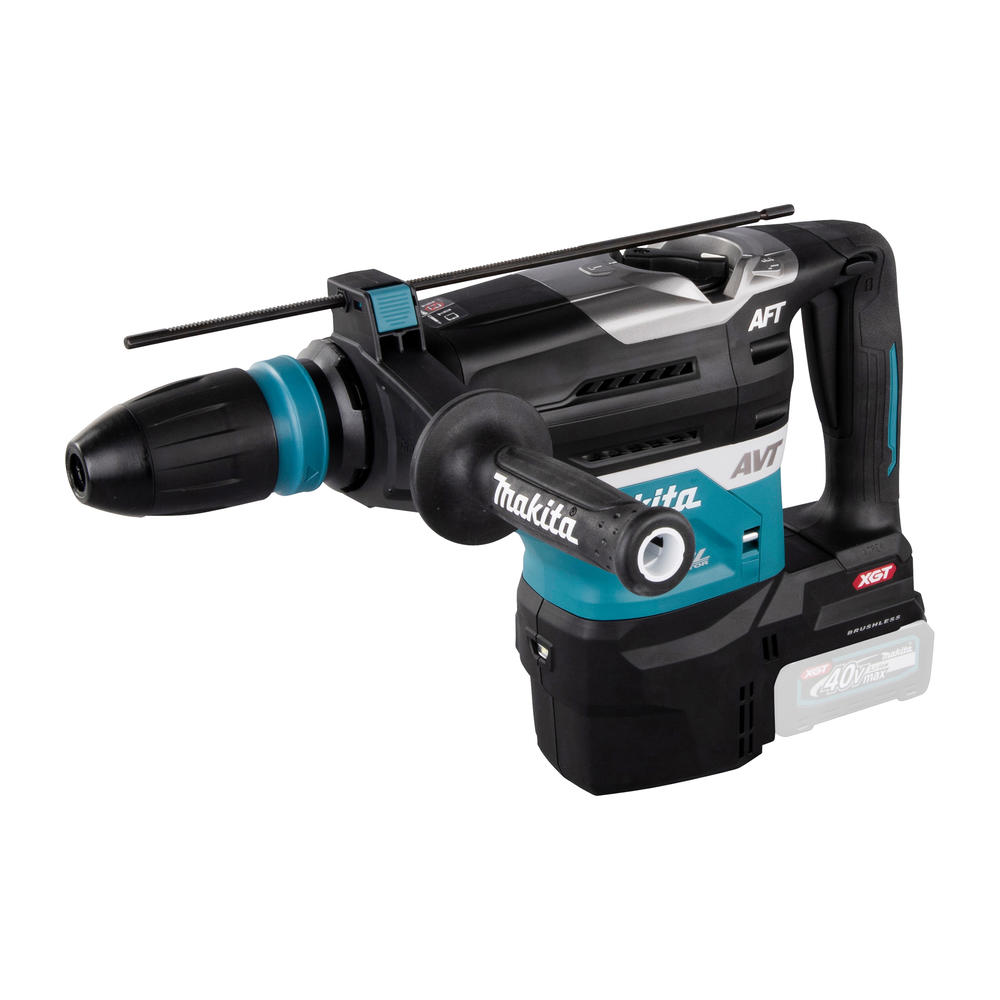

Makita HR005GZ01 40V Max XGT Brushless SDS Max Rotary Hammer (Body Only, Carry Case)

Name: Makita HR005GZ01 40V Max XGT Brushless SDS Max Rotary Hammer (Body Only, Carry Case)
Brand: Makita
SKU: HR005GZ01
Availability: InStock

6.3kg bare40V3 years (with registration)

40V XGT brushless SDS Max rotary hammer for holes up to 40mm in concrete and core bits to 105mm. AVT, AFT anti-rotation, twin LED lights and AWS wireless extractor start with the supplied adaptor.

Adds it to My Tools, kept on this device

How do you want it?2 ways to buy · tap one to see what's in the box

Lowest price we track

£759.00at Machine Mart · + £4.99 delivery

View at Machine Mart ›

Compare retailersTotal with delivery

Machine Mart Lowest£759.00 + £4.99 delivery£763.99View ›

Tooled Up£809.95, free delivery · Available to order£809.95View ›

My Tool Shed£809.95, free delivery · Available to order£809.95View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

Impact energy

40mm

Max hole, concrete

2,900bpm

Impact rate

6.3kg

Weight (bare)

Where it sits among sds max hammer drills

Against the 56 sds max hammer drills we list. Not a score: bigger isn't always better for your job.

Impact energy8J

5.6J lowestMakita HR3540Chighest 21.4JMakita HR006G

Max hole, concrete40mm

35mm lowestMakita HR3540Chighest 52mmHiKOKI DH52ME

Impacts per minute2,900

2,100 lowestBosch GBH 12-52 DVhighest 4,100Einhell TE-RH 38 3F

Weight (bare)6.3kg

5.2kg lightestMakita HR3540Cheaviest 11.9kgBosch GBH 12-52 DV

Compare it with: + HiKOKI DH52ME + Milwaukee M18 FHACO540 + DeWalt DCH775 + Bosch GBH 18V-40 C

Full specs

From Makita's own documentation. Checked 03/10/2026. Report a spec error ›

Hammer & Drilling

Chuck systemSDS Max

Impact energy8 J

Measured to EPTA✓ Yes

Impact rate2,900 bpm

No-load speed250–500

Max hole, concrete40 mm

Best range, concrete16–35mm

Max core cutter105 mm

Power & Motor

Voltage40V

MotorBrushless

Physical & Build

Weight (bare)6.3 kg

Weight (with battery)7.3 kg

LED work light✓ Yes

Case typeCarry case

Case included✓ Yes

Noise level90 dB(A) LpA / 101 dB(A) LwA

Vibration (hammer drilling)4.6 m/s²

Vibration (chiselling)3.7 m/s²

Modes & Handling

ModesRotation with hammering / Hammering only / Chisel angle adjust

Chisel only✓ Yes

Chisel position lock✓ Yes

Reduced or variable impact✓ Yes

BodyL-shape

Anti-vibration✓ Yes

Anti-vibration systemAVT (Anti-Vibration Technology)

Electronic anti-rotation✓ Yes

Anti-rotation systemAFT (Active Feedback sensing Technology)

Safety clutch✓ Yes

Soft start✓ Yes

Dust & Extraction

Dust extractionDust extraction attachment 199143-4 or 199144-2

Extractor auto-startYes (via add-on module)

Auto-start systemMakita AWS, wireless adaptor WUT01 (supplied)

Powered by Makita 40V XGT · 6

All 6 batteries that fit this tool, smallest first. Kits and chargers ›

BL4025 2.5Ah · 90Wh 0.71kg 7.01kg from £79.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL4040F 4.0Ah · 144Wh 0.94kg 7.24kg from £189.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL4040 4.0Ah · 144Wh 1.0kg 7.3kg from £169.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL4050F 5.0Ah · 180Wh 1.3kg 7.6kg from £214.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL4080H 8.0Ah · 288Wh 1.8kg 8.1kg from £314.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL4080F 8.0Ah · 288Wh 1.9kg 8.2kg from £289.95at Tooled Up + £6.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.
