40V XGT · Brushless Makita HR009GZ01 40V Max XGT Brushless Quick-Change Chuck SDS+ Rotary Hammer (Body Only, Carry Case)

SDS+ Hammer Drills · Makita 40V XGT

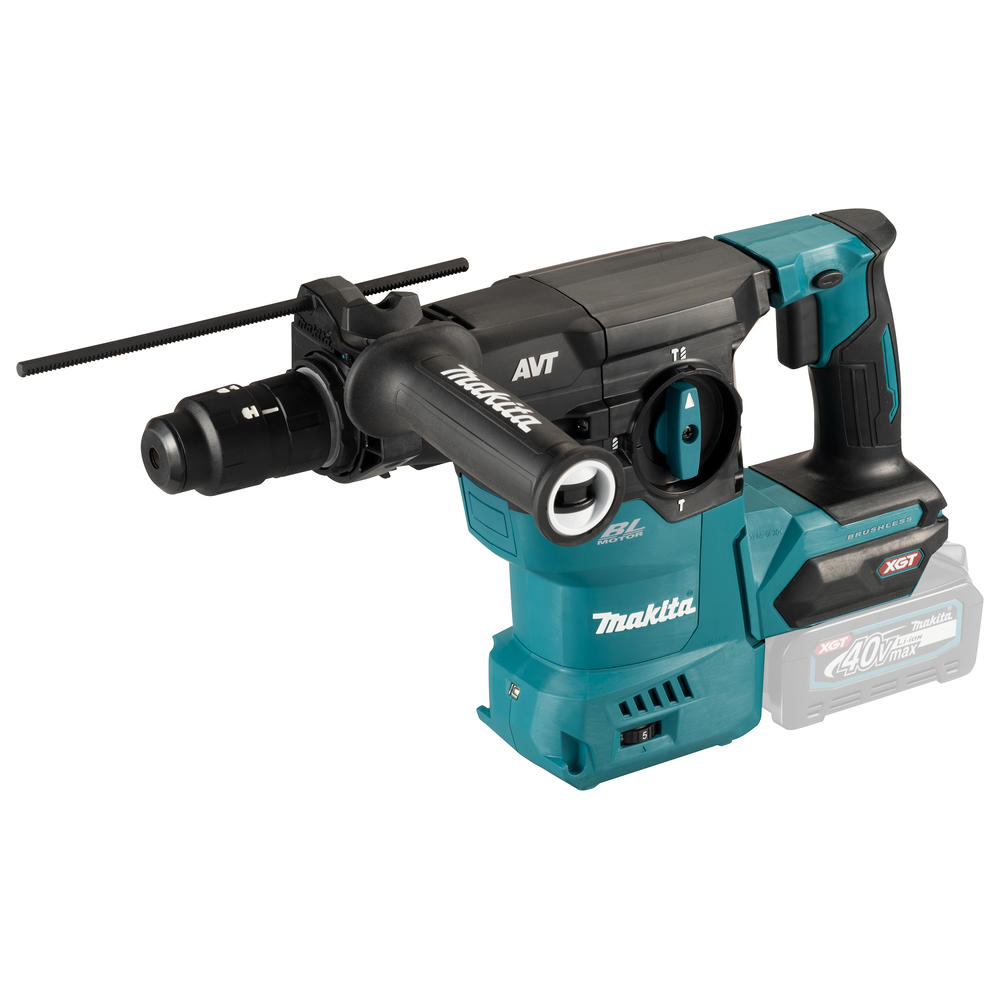

Makita HR009GZ01 40V Max XGT Brushless Quick-Change Chuck SDS+ Rotary Hammer (Body Only, Carry Case)

Name: Makita HR009GZ01 40V Max XGT Brushless Quick-Change Chuck SDS+ Rotary Hammer (Body Only, Carry Case)
Brand: Makita
SKU: HR009GZ01
Availability: InStock

4.3kg bare40V3 years (with registration)

Brushless 40V Max XGT three-mode SDS+ combination hammer for holes up to 30mm in concrete and core bits to 80mm. AVT, AFT anti-rotation, quick-change drill chuck and AWS wireless extractor start.

Adds it to My Tools, kept on this device

Lowest price we track

£479.95at Tooled Up · + £6.95 delivery

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£479.95 + £6.95 delivery£486.90View ›

My Tool Shed£479.95 + £6.95 delivery£486.90View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

3.9J

Impact energy

30mm

Max hole, concrete

4,500bpm

Impact rate

4.3kg

Weight (bare)

Where it sits among sds+ hammer drills

Against the 124 sds+ hammer drills we list. Not a score: bigger isn't always better for your job.

Impact energy3.9J

1J lowestMakita HR140Dhighest 5.8JBosch GBH 18V-34 CF

Max hole, concrete30mm

12mm lowestEinhell TE-HD 18/12 Lihighest 35mmHiKOKI DH3635DC

Impacts per minute4,500

2,900 lowestBosch GBH 18V-34 CFhighest 6,000Einhell TE-HD 18/12 Li

Weight (bare)4.3kg

1.5kg lightestEinhell TE-HD 18/12 Liheaviest 6.1kgEinhell RT-RH 32

Compare it with: + Bosch GBH 18V-22 X + HiKOKI DH1826DA + Bosch Green PBH 2100 RE + Einhell TC-RH 800 4F

Full specs

From Makita's own documentation. Checked 03/10/2026. Report a spec error ›

Hammer & Drilling

Chuck systemSDS+

Impact energy3.9 J

Measured to EPTA✓ Yes

Impact rate4,500 bpm

No-load speed0–840

Max hole, concrete30 mm

Best range, concrete8–22mm

Max core cutter80 mm

Max hole, wood32 mm

Max hole, steel13 mm

Physical & Build

Weight (bare)4.3 kg

Weight (with battery)5.3 kg

Case typeCarry case

Case modelPlastic case 821875-2

Case included✓ Yes

Noise level95 dB(A) LpA / 103 dB(A) LwA

Vibration (hammer drilling)11.5 m/s²

Vibration (chiselling)7.3 m/s²

Modes & Handling

ModesRotation only / Hammering with rotation / Hammering only

Chisel only✓ Yes

Drill only (no hammer)✓ Yes

Quick-change chuck✓ Yes

BodyInline or D-handle

Anti-vibration✓ Yes

Anti-vibration systemAVT (Anti-Vibration Technology)

Electronic anti-rotation✓ Yes

Anti-rotation systemAFT (Active Feedback sensing Technology)

Safety clutch✓ Yes

Power & Motor

Voltage40V

MotorBrushless

Dust & Extraction

Extractor auto-startYes (via add-on module)

Auto-start systemMakita AWS (Bluetooth); wireless adaptor not listed as supplied

Powered by Makita 40V XGT · 6

All 6 batteries that fit this tool, smallest first. Kits and chargers ›

BL4025 2.5Ah · 90Wh 0.71kg 5.01kg from £79.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL4040F 4.0Ah · 144Wh 0.94kg 5.24kg from £189.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL4040 4.0Ah · 144Wh 1.0kg 5.3kg from £169.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL4050F 5.0Ah · 180Wh 1.3kg 5.6kg from £214.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL4080H 8.0Ah · 288Wh 1.8kg 6.1kg from £314.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL4080F 8.0Ah · 288Wh 1.9kg 6.2kg from £289.95at Tooled Up + £6.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.
