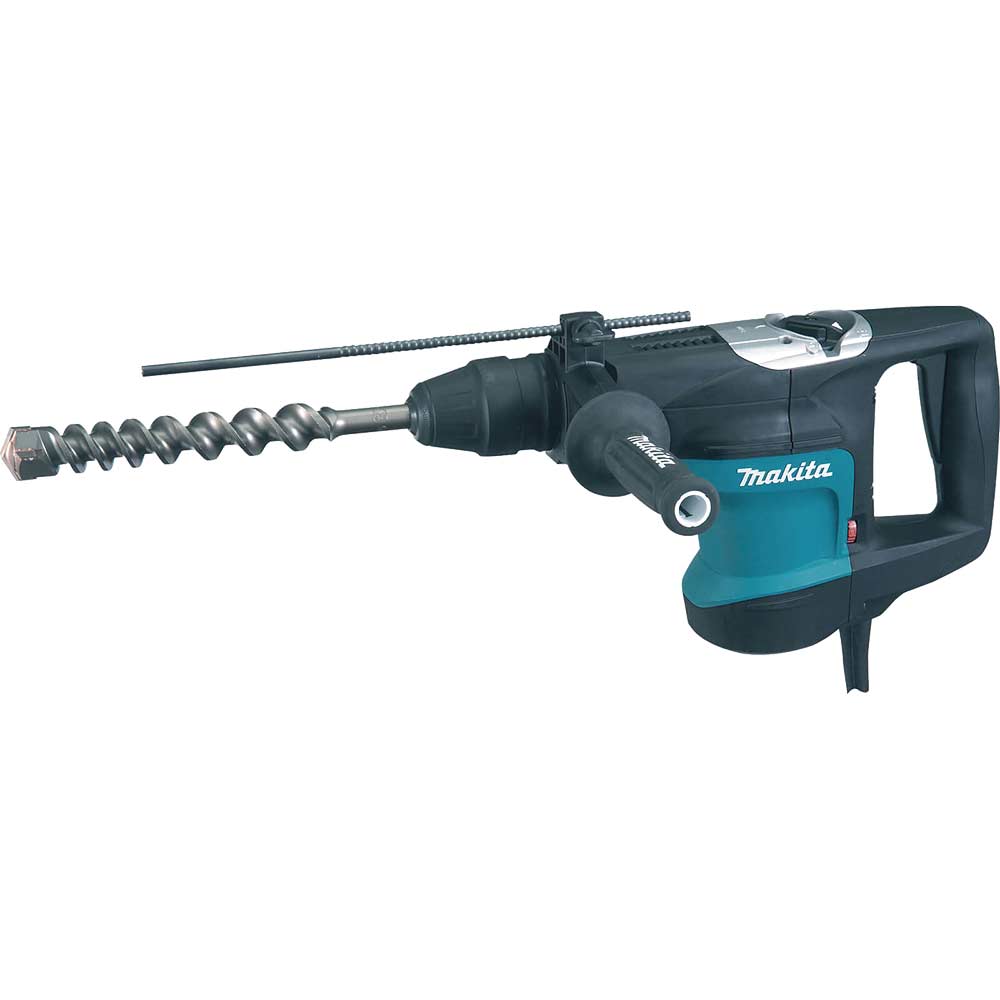

Makita HR3540C 110V 850W SDS Max Rotary Hammer (Carry Case)
SDS Max Hammer Drills

Makita HR3540C 110V 850W SDS Max Rotary Hammer (Carry Case)

5.2kg110V3 years (with registration)

850W SDS Max rotary hammer for holes up to 35mm in concrete and core bits to 90mm. Three modes including rotation only, with constant speed control, soft start and a job light.

Adds it to My Tools, kept on this device
Lowest price we track
£595.95at Tooled Up · Free delivery
Compare retailersTotal with delivery
Tooled Up Lowest£595.95, free delivery£595.95View ›
My Tool Shed£595.95, free delivery£595.95View ›
Prices from UK retailer feeds, updated daily.We may earn a commission
5.6J
Impact energy
35mm
Max hole, concrete
850W
Power input
5.2kg
Weight

Where it sits among sds max hammer drills

Against the 56 sds max hammer drills we list. Not a score: bigger isn't always better for your job.

Impact energy5.6J
5.6J lowestThis onehighest 21.4JMakita HR006G
Max hole, concrete35mm
35mm lowestThis onehighest 52mmHiKOKI DH52ME
Power input850W
850W lowestThis onehighest 1,700WBosch GBH 12-52 DV
Weight5.2kg
5.2kg lightestThis oneheaviest 11.9kgBosch GBH 12-52 DV
Compare it with: + Milwaukee K 545 S + DeWalt D25614 + Bosch GBH 5-40 DCE + HiKOKI DH52MA

Full specs

From Makita's own documentation. Checked 03/10/2026. Report a spec error ›

Hammer & Drilling

Chuck systemSDS Max
Impact energy5.6 J
Measured to EPTA✓ Yes
Impact rate3,300 bpm
No-load speed315–630
Max hole, concrete35 mm
Best range, concrete10–22mm
Max core cutter90 mm

Modes & Handling

ModesRotation only / Hammering with rotation / Hammering only
Chisel only✓ Yes
Drill only (no hammer)✓ Yes
Reduced or variable impact✓ Yes
BodyL-shape
Safety clutch✓ Yes
Soft start✓ Yes

Power & Motor

Voltage110V
Power input850 W
Power output1,100 W

Physical & Build

Weight5.2 kg
LED work light✓ Yes
Case typeCarry case
Case model824819-1
Case included✓ Yes
Noise level94 dB(A) LpA / 102 dB(A) LwA
Vibration (hammer drilling)15.3 m/s²
Vibration (chiselling)11.6 m/s²

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with Makita
Register with Makita ›
Register within 30 days of buying Own one? Add it to My Tools and we'll remind you before the 30 days run out

Register within 30 days. Batteries/chargers excluded (Li-ion batteries 2yr standard from Apr 2025).

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
