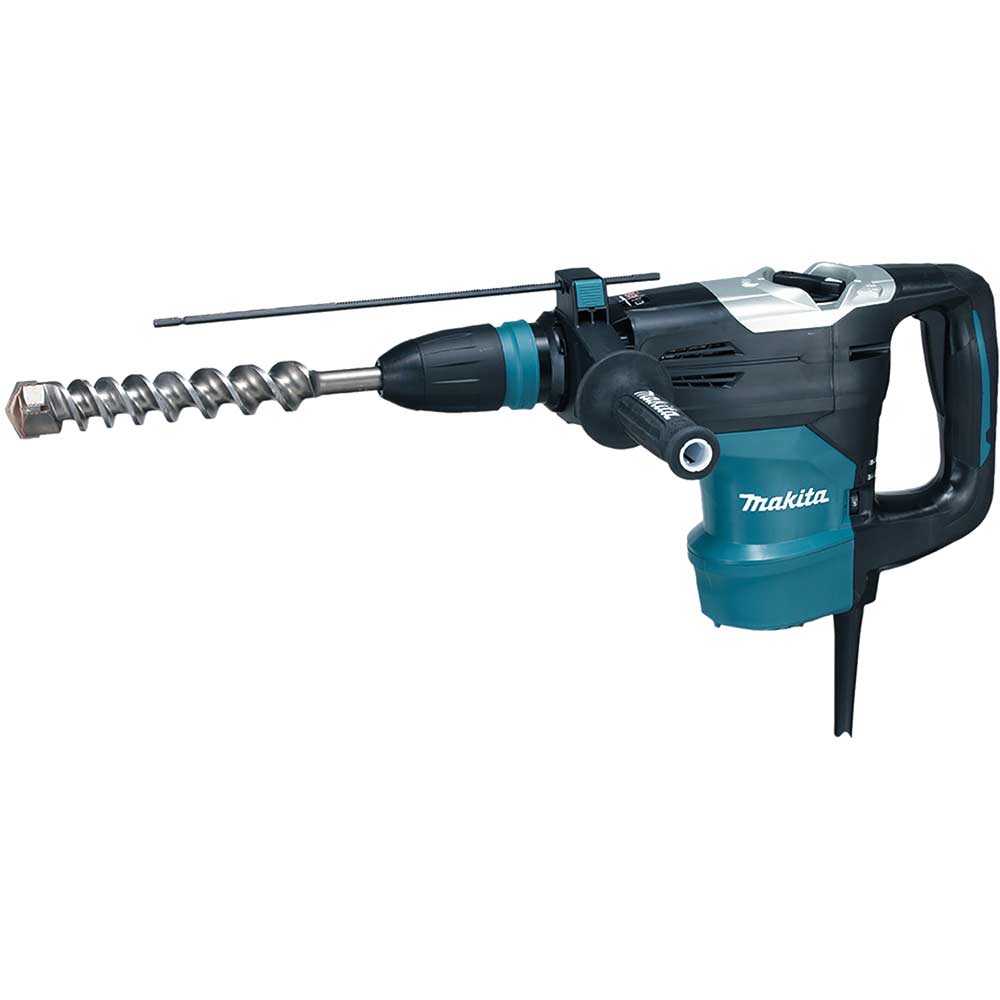

Makita HR4003C 110V 1100W SDS Max Rotary Hammer (Carry Case)
SDS Max Hammer Drills

Makita HR4003C 110V 1100W SDS Max Rotary Hammer (Carry Case)

6.2kg110V3 years (with registration)

1100W SDS Max rotary hammer for holes up to 40mm in concrete and core bits to 105mm. Variable speed dial, constant speed control, soft start and 24 chisel positions.

Adds it to My Tools, kept on this device
Lowest price we track
£706.95at Tooled Up · Free delivery · Available to order
Compare retailersTotal with delivery
Tooled Up Lowest£706.95, free delivery · Available to order£706.95View ›
My Tool Shed£706.95, free delivery · Available to order£706.95View ›
Prices from UK retailer feeds, updated daily.We may earn a commission
8.3J
Impact energy
40mm
Max hole, concrete
1,100W
Power input
6.2kg
Weight

Where it sits among sds max hammer drills

Against the 56 sds max hammer drills we list. Not a score: bigger isn't always better for your job.

Impact energy8.3J
5.6J lowestMakita HR3540Chighest 21.4JMakita HR006G
Max hole, concrete40mm
35mm lowestMakita HR3540Chighest 52mmHiKOKI DH52ME
Power input1,100W
850W lowestMakita HR3540Chighest 1,700WBosch GBH 12-52 DV
Weight6.2kg
5.2kg lightestMakita HR3540Cheaviest 11.9kgBosch GBH 12-52 DV
Compare it with: + Bosch GBH 8-45 D + DeWalt D25614 + HiKOKI DH40MC + Milwaukee K 750 S

Full specs

From Makita's own documentation. Checked 03/10/2026. Report a spec error ›

Hammer & Drilling

Chuck systemSDS Max
Impact energy8.3 J
Measured to EPTA✓ Yes
Impact rate2,900 bpm
No-load speed250–500
Max hole, concrete40 mm
Best range, concrete16–35mm
Max core cutter105 mm
Dust extractionDust extraction attachment 199144-2

Power & Motor

Voltage110V
Power input1,100 W
Power output1,500 W

Modes & Handling

ModesRotation with hammering / Hammering only / Bit angle change (24 positions)
Chisel only✓ Yes
Chisel position lock✓ Yes
Reduced or variable impact✓ Yes
BodyL-shape
Safety clutch✓ Yes
Soft start✓ Yes

Physical & Build

Weight6.2 kg
Case typeCarry case
Case model196277-4
Case included✓ Yes
Noise level95 dB(A) LpA / 103 dB(A) LwA
Vibration (hammer drilling)10.1 m/s²
Vibration (chiselling)7.6 m/s²

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with Makita
Register with Makita ›
Register within 30 days of buying Own one? Add it to My Tools and we'll remind you before the 30 days run out

Register within 30 days. Batteries/chargers excluded (Li-ion batteries 2yr standard from Apr 2025).

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
