JV103D Jigsaw

£155.95at Tooled Up · + £5.95 delivery · Available to order

View at Tooled Up › We may earn a commission

‹ Jigsaws

12V CXT · Brushless Makita JV103DZ 12V Max CXT Brushless Top Handle Jigsaw (Body Only)

Jigsaws · Makita 12V CXT

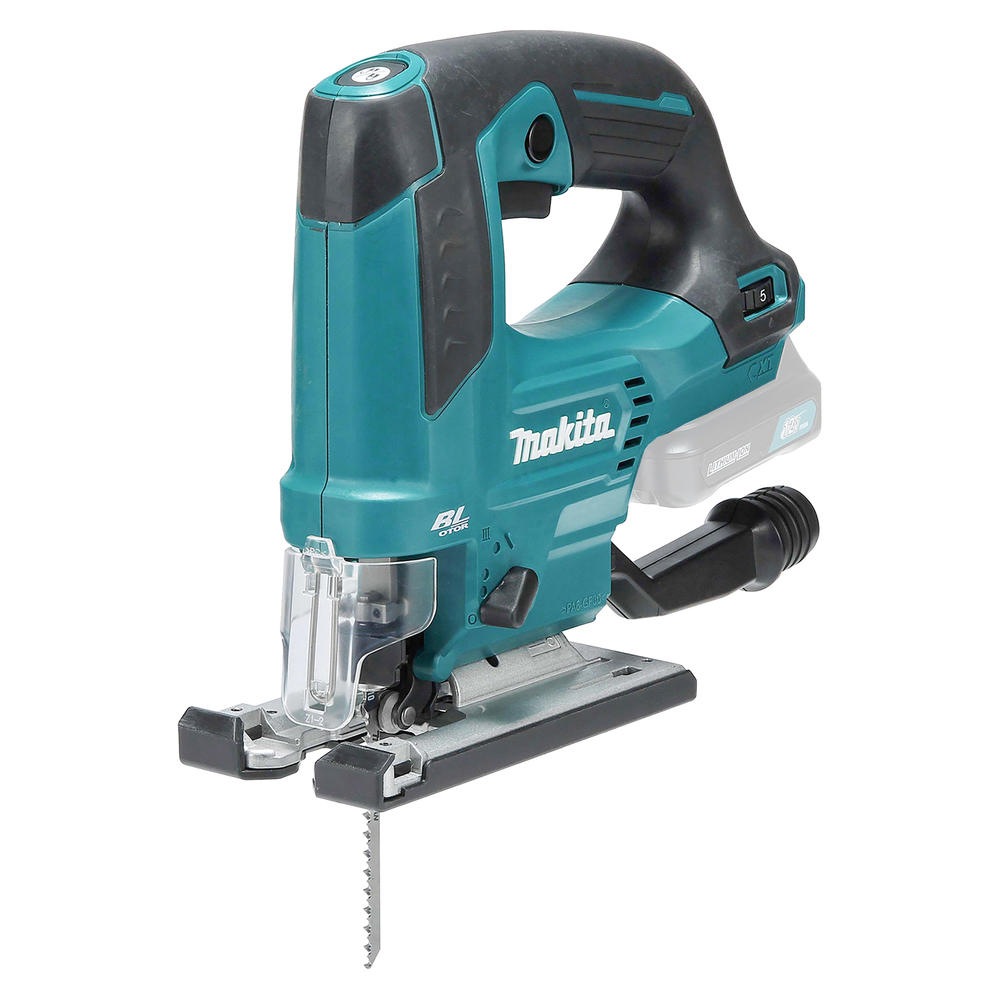

Makita JV103DZ 12V Max CXT Brushless Top Handle Jigsaw (Body Only)

Name: Makita JV103DZ 12V Max CXT Brushless Top Handle Jigsaw (Body Only)
Brand: Makita
SKU: JV103DZ
Availability: BackOrder

1.69kg bare12V3 years (with registration)

Makita JV103D 12V Max CXT brushless top-handle jigsaw: 90mm in wood, 10mm in steel, 23mm stroke, 800–3,000 spm. Body only.

Adds it to My Tools, kept on this device

Lowest price we track

£155.95at Tooled Up · + £5.95 delivery · Available to order

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£155.95 + £5.95 delivery · Available to order£161.90View ›

My Tool Shed£155.95 + £5.95 delivery · Available to order£161.90View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

90mm

Max cut, wood

10mm

Max cut, steel

23mm

Stroke length

3,000spm

Stroke rate

Where it sits among jigsaws

Against the 67 jigsaws we list. Not a score: bigger isn't always better for your job.

Max cut, wood90mm

40mm lowestFestool PSC-E 18highest 160mmHiKOKI CJ36DA

Max cut, mild steel10mm

2mm lowestMakita JV101Dhighest 12mmEinhell TE-JS 18/100 Li

Max stroke rate3,000spm

2,400spm lowestEinhell TE-JS 18/80 Lihighest 3,800spmFestool PSBC 500

Weight (bare)1.69kg

1.3kg lightestBosch Green EasySaw 18V-70heaviest 2.7kgHiKOKI CJ160V

Compare it with: + Milwaukee M12 FJS + Bosch GST 12V-70 + DeWalt DCS334 + Bosch Green PST 650

Full specs

From Makita's own documentation. Checked 06/10/2026. Report a spec error ›

Cutting

Max cut, wood90 mm

Max cut, aluminium20 mm

Max cut, mild steel10 mm

Stroke length23 mm

Max stroke rate3,000 spm

Orbital settings3 + off

Bevel angles0–45° L/R

Dust & Extraction

Dust port size23 / 28 mm

Extractor hoseOther extractor hoses: check the adaptor fits this port

Extractor auto-startNo

Grip & Features

HandleTop handle

Soft start✓ Yes

Power & Motor

Voltage12V

MotorBrushless

Physical & Build

Weight (bare)1.69 kg

Weight (with battery)2 kg

LED work light✓ Yes

Noise level88 dB(A) LpA / 96 dB(A) LwA

Vibration (cutting wood)8.5 m/s²

Vibration (cutting metal)6.0 m/s²

The verdictOur take

The JV103D is the top-handle twin of the JV102D, with the same 90mm wood depth, 10mm steel and 23mm stroke. Makita gives it lower vibration than the barrel-grip version (8.5 against 11.5 m/s² cutting boards) at 1.9–2.0kg with a battery. Against the brushed JV101D it cuts deeper and runs faster, 3,000 against 2,900 spm.

Powered by Makita 12V CXT · 2

All 2 batteries that fit this tool, smallest first. Kits and chargers ›

BL1021B 2.0Ah · 21.6Wh 0.21kg 1.9kg from £38.99at Machine Mart + £4.99 delivery View at Machine Mart ›

BL1041B 4.0Ah · 43.2Wh 0.38kg 2.07kg from £49.00at Machine Mart + £4.99 delivery View at Machine Mart ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.
