DCD805 Combi Drill

£279.952x 1.7Ah POWERSTACK + charger + TSTAK Hard Case · at Tooled Up · + £6.95 delivery

View at Tooled Up › We may earn a commission

‹ Combi Drills

18V XR · Brushless DeWalt DCD805N-XJ 18V XR Brushless Hammer Drill Driver (Body Only)

Combi Drills · DeWalt 18V XR

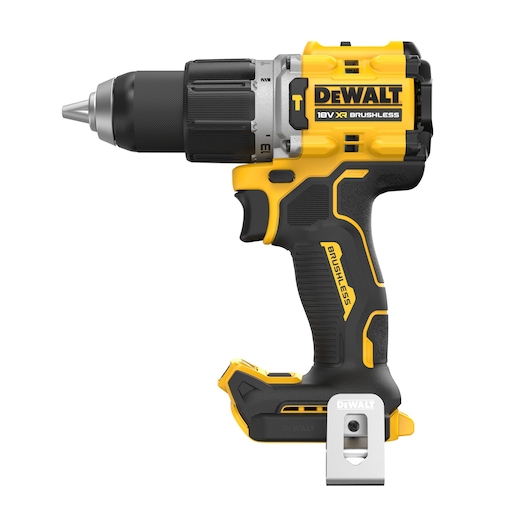

DeWalt DCD805N-XJ 18V XR Brushless Hammer Drill Driver (Body Only)

90Nm2-speed1.34kg bare3 years (with registration)

18V XR brushless hammer drill driver, bare unit. 2-speed all-metal transmission, 90Nm torque, 500W power output. Compact 177mm length, 1.34kg weight, anti-rotation system. 3-mode foot LED with pivoting feature. Includes a magnetic bit holder and belt hook.

Adds it to My Tools, kept on this device

How do you want it?3 ways to buy · tap one to see what's in the box

Lowest price we track

£279.95at Tooled Up · + £6.95 delivery

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£279.95 + £6.95 delivery£286.90View ›

My Tool Shed£279.95 + £6.95 delivery£286.90View ›

Machine Mart£309.00 + £4.99 delivery£313.99View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

90Nm

Max torque

2,000rpm

Max speed

1.34kg

Weight (bare)

1.5–13mm

Chuck size

Where it sits among combi drills

Against the 47 combi drills we list. Not a score: bigger isn't always better for your job.

Max torque90Nm

30Nm lowestMilwaukee M12 BPDhighest 180NmMakita HP003G

Max drilling, wood55mm

21mm lowestMakita HP333Dhighest 89mmMilwaukee M18 FPD2

Weight (bare)1.34kg

0.85kg lightestDeWalt DCD706heaviest 2.1kgMakita HP003G

Blows per minute34,000

22,500 lowestMilwaukee M12 BPDhighest 57,600Festool TPC 18/4

Compare it with: + Milwaukee M18 FPD3 + Makita DHP492 + Bosch GSB 18V-45 + Einhell TP-CD 18/80 Li-i BL

Full specs

From DeWalt's own documentation. Checked 06/10/2026. Report a spec error ›

Performance

Max torque90 Nm

Speed settings2

No-load speed0–650 / 0–2,000 rpm

Impacts per minute34,000

Hammer function✓ Yes

MotorBrushless

Torque settings15

Voltage18V

Year released2023

Chuck & Drilling

Chuck size1.5–13mm

Chuck typeKeyless Metal

Max wood55 mm

Max masonry13 mm

Max steel13 mm

Physical & Build

Weight (bare)1.34 kg

Weight (with battery)1.95 kg

LED work light✓ Yes

Belt clip✓ Yes

Case typeNone

Noise level93 dB(A) LpA / 101 dB(A) LwA

Vibration (drilling metal)< 2.5 m/s²

Vibration (hammer drilling)11 m/s²

The verdictOur take

The DCD805 is DeWalt's mainstream 18V XR brushless combi, a 2-speed 90Nm drill at a manageable 1.34kg bare, drilling 55mm in wood with a metal chuck. It is the current core combi that replaced the long-serving DCD796 and suits the bulk of trade drilling and driving. We rate it the sensible default for most XR owners; step up to the 3-speed DCD1007 for heavy torque, or down to the lighter DCD709 if you want a more compact body.

Powered by DeWalt 18V XR · 12

All 12 batteries that fit this tool, smallest first. Kits and chargers ›

DCBP034 1.7Ah · 30.6Wh 0.32kg 1.66kg from £78.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB183 2.0Ah · 36Wh 0.4kg 1.74kg from £44.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCBP318 3.5Ah · 63Wh 0.58kg 1.92kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB182 4.0Ah · 72Wh 0.61kg 1.95kg from £49.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB184 5.0Ah · 90Wh 0.62kg 1.96kg from £59.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB184B 5.0Ah · 90Wh 0.62kg 1.96kg No retailer price yet About this battery ›

DCBP518 5.0Ah · 90Wh 0.75kg 2.09kg from £122.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB546 6.0Ah · 108Wh · via DeWalt 18V/54V FlexVolt 1.08kg 2.42kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
