DCF500 Ratchet

£199.95at Tooled Up · + £5.95 delivery

View at Tooled Up › We may earn a commission

‹ Ratchets

12V XR

Ratchets · DeWalt 12V XR

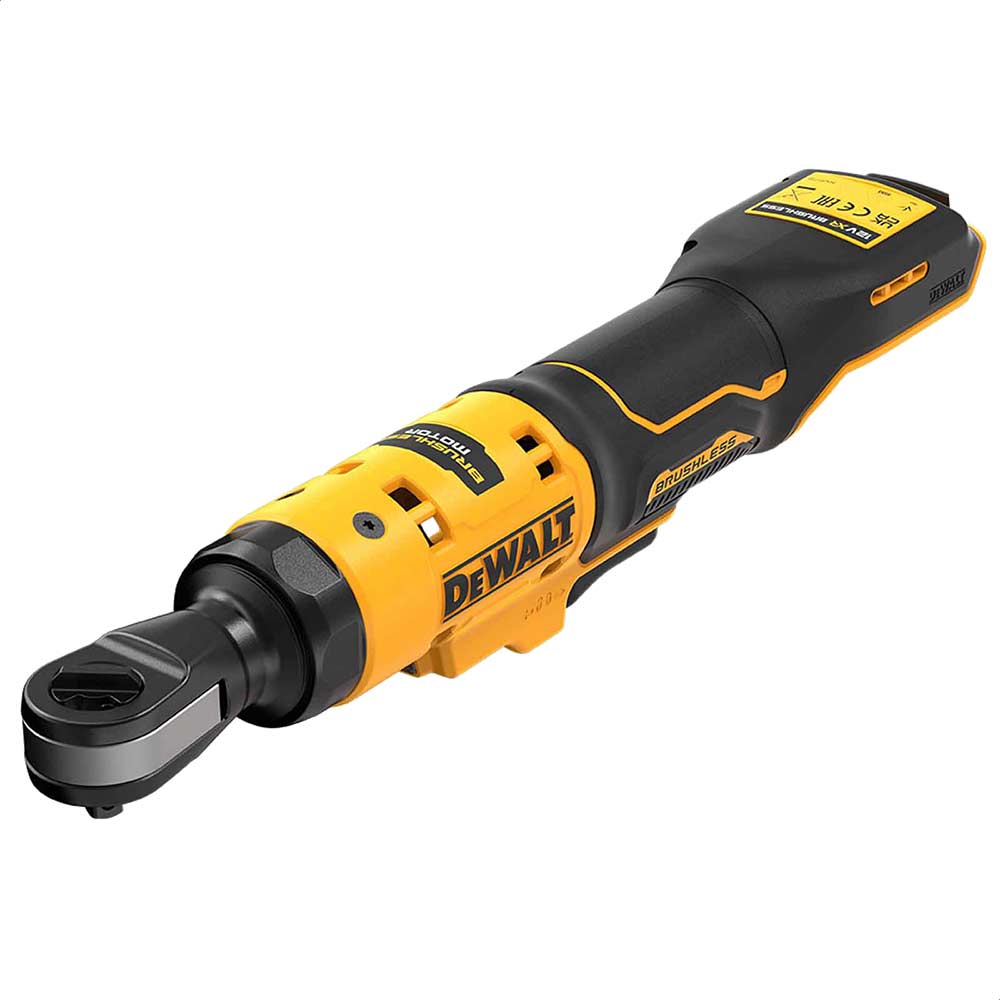

DeWalt DCF500N-XJ 12V XR 3/8″ Ratchet (Body Only)

Name: DeWalt DCF500N-XJ 12V XR 3/8″ Ratchet (Body Only)
Brand: DeWalt
SKU: DCF500N-XJ
Availability: InStock

67.79Nm0.88kg bare3 years (with registration)

DeWalt DCF500: 3/8" cordless ratchet, 67.79 Nm motor torque, up to 450 rpm, 0.88kg bare. 3/8" and 1/4" square anvils and a 1/4" hex anvil (swappable).

Adds it to My Tools, kept on this device

Lowest price we track

£199.95at Tooled Up · + £5.95 delivery

View at Tooled Up ›

Prices from UK retailer feeds, updated daily.We may earn a commission

3/8"

Drive

67.79Nm

Max torque (motor)

450rpm

Top speed

0.88kg

Weight (bare)

Where it sits among 3/8" ratchets

Scaled against the 15 ratchets with a 3/8" drive we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Max torque (motor)67.79Nm

47Nm lowestMilwaukee M12 IRhighest 95NmMilwaukee M12 FIR38G2

Top speed450rpm

200rpm lowestMilwaukee M12 FIR38LRhighest 800rpmMakita WR100D

Weight (bare)0.88kg

0.7kg lightestMilwaukee M12 IRheaviest 1.3kgDeWalt DCF513E

Vibration (fastening)3.4m/s²

2.3m/s² lowestBosch GRC 12V-60 3/8 SNhighest 7.5m/s²Bosch GRC 18V-60

Compare it with: + Milwaukee M12 FIR38 + Makita WR100D + Bosch GRC 12V-60 3/8 SN + Einhell TE-RW 18/60 Li

Full specs

From DeWalt's own documentation. Checked 17/10/2026. Report a spec error ›

Drive & Torque

Drive3/8"

Other drives3/8" and 1/4" square anvils and a 1/4" hex anvil (swappable)

TypeStandard

Max torque (motor)67.79 Nm

Top speed450 rpm

Overall length330 mm

Voltage12V

Physical & Build

Weight (bare)0.88 kg

Weight (with battery)1.13 kg

LED work light✓ Yes

Noise level81 dB(A) LpA / 89 dB(A) LwA

Vibration (fastening)3.4 m/s²

Powered by DeWalt 12V XR · 3

All 3 batteries that fit this tool, smallest first. Kits and chargers ›

DCB127 2.0Ah · 21.6Wh 0.22kg 1.1kg No retailer price yet About this battery ›

DCB124 3.0Ah · 32.4Wh 0.25kg 1.13kg No retailer price yet About this battery ›

DCB126 5.0Ah · 54Wh 0.46kg 1.34kg from £54.95at Tooled Up + £5.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
