DCF513E Ratchet

£233.95at Tooled Up · + £5.95 delivery · Available to order

View at Tooled Up › We may earn a commission

‹ Ratchets

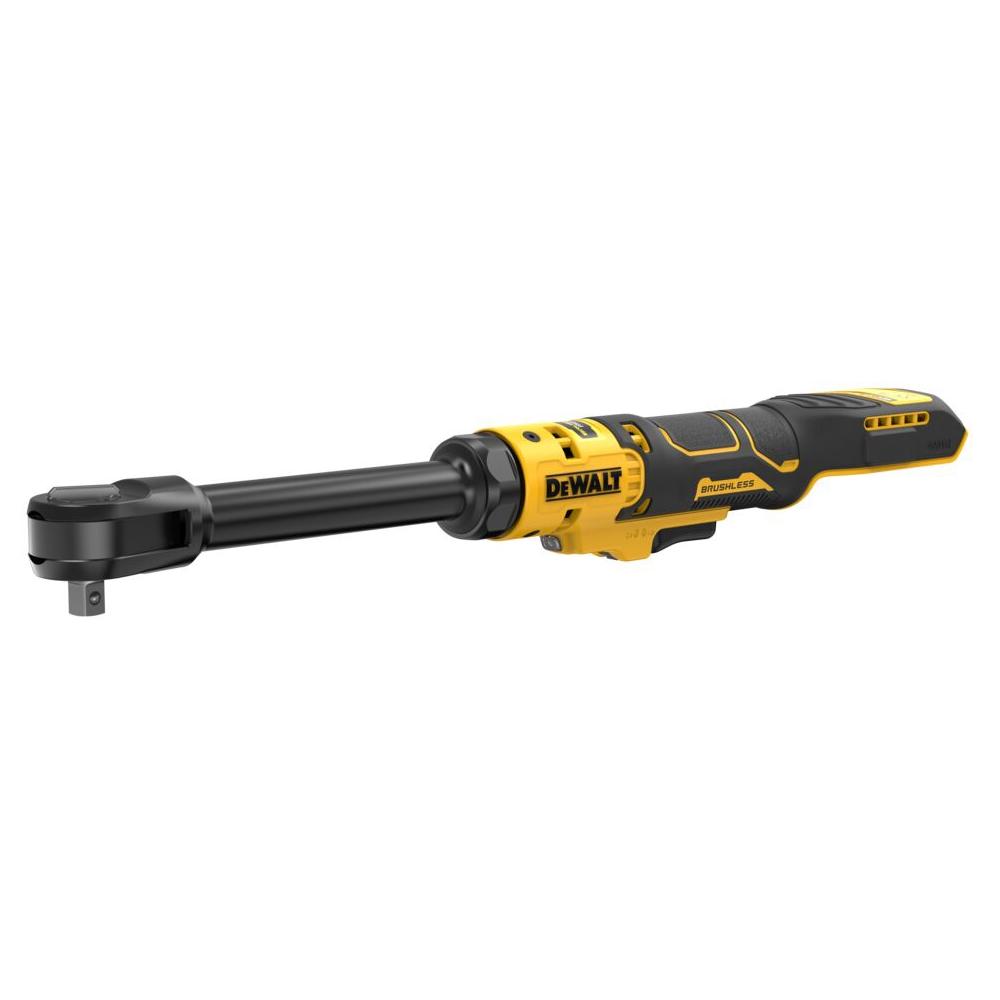

18V XR · Brushless DeWalt DCF513EN-XJ 18V XR Brushless 3/8″ Extended Ratchet (Body Only)

Ratchets · DeWalt 18V XR

DeWalt DCF513EN-XJ 18V XR Brushless 3/8″ Extended Ratchet (Body Only)

Name: DeWalt DCF513EN-XJ 18V XR Brushless 3/8″ Extended Ratchet (Body Only)
Brand: DeWalt
SKU: DCF513EN-XJ
Availability: BackOrder

95Nm1.3kg bare3 years (with registration)

DeWalt DCF513E: 3/8" extended cordless ratchet, 95 Nm motor torque, 237 Nm by hand, up to 250 rpm, 1.3kg bare.

Adds it to My Tools, kept on this device

Lowest price we track

£233.95at Tooled Up · + £5.95 delivery · Available to order

View at Tooled Up ›

Prices from UK retailer feeds, updated daily.We may earn a commission

3/8"

Drive

95Nm

Max torque (motor)

250rpm

Top speed

1.3kg

Weight (bare)

Where it sits among 3/8" ratchets

Scaled against the 15 ratchets with a 3/8" drive we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Max torque (motor)95Nm

47Nm lowestMilwaukee M12 IRhighest 95NmThis one

Top speed250rpm

200rpm lowestMilwaukee M12 FIR38LRhighest 800rpmMakita WR100D

Weight (bare)1.3kg

0.7kg lightestMilwaukee M12 IRheaviest 1.3kgThis one

Vibration (fastening)5.0m/s²

2.3m/s² lowestBosch GRC 12V-60 3/8 SNhighest 7.5m/s²Bosch GRC 18V-60

Compare it with: + Bosch GRC 18V-60 + Makita DWR180 + Einhell TE-RW 18/60 Li + Milwaukee M12 FIR38

Full specs

From DeWalt's own documentation. Checked 17/10/2026. Report a spec error ›

Drive & Torque

Drive3/8"

TypeExtended reach

Max torque (motor)95 Nm

Max torque by hand237 Nm

Top speed250 rpm

Overall length462 mm

Power & Motor

Voltage18V

MotorBrushless

Physical & Build

Weight (bare)1.3 kg

Weight (with battery)1.91 kg

LED work light✓ Yes

Noise level85 dB(A) LpA / 93 dB(A) LwA

Vibration (fastening)5 m/s²

Powered by DeWalt 18V XR · 12

All 12 batteries that fit this tool, smallest first. Kits and chargers ›

DCBP034 1.7Ah · 30.6Wh 0.32kg 1.62kg from £78.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB183 2.0Ah · 36Wh 0.4kg 1.7kg from £44.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCBP318 3.5Ah · 63Wh 0.58kg 1.88kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB182 4.0Ah · 72Wh 0.61kg 1.91kg from £49.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB184 5.0Ah · 90Wh 0.62kg 1.92kg from £59.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB184B 5.0Ah · 90Wh 0.62kg 1.92kg No retailer price yet About this battery ›

DCBP518 5.0Ah · 90Wh 0.75kg 2.05kg from £122.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB546 6.0Ah · 108Wh · via DeWalt 18V/54V FlexVolt 1.08kg 2.38kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
