DCF510 Ratchet

£214.95at Tooled Up · + £5.95 delivery

View at Tooled Up › We may earn a commission

‹ Ratchets

18V XR · Brushless DeWalt DCF510N-XJ 18V XR Brushless 1/2″ Ratchet (Body Only)

Ratchets · DeWalt 18V XR

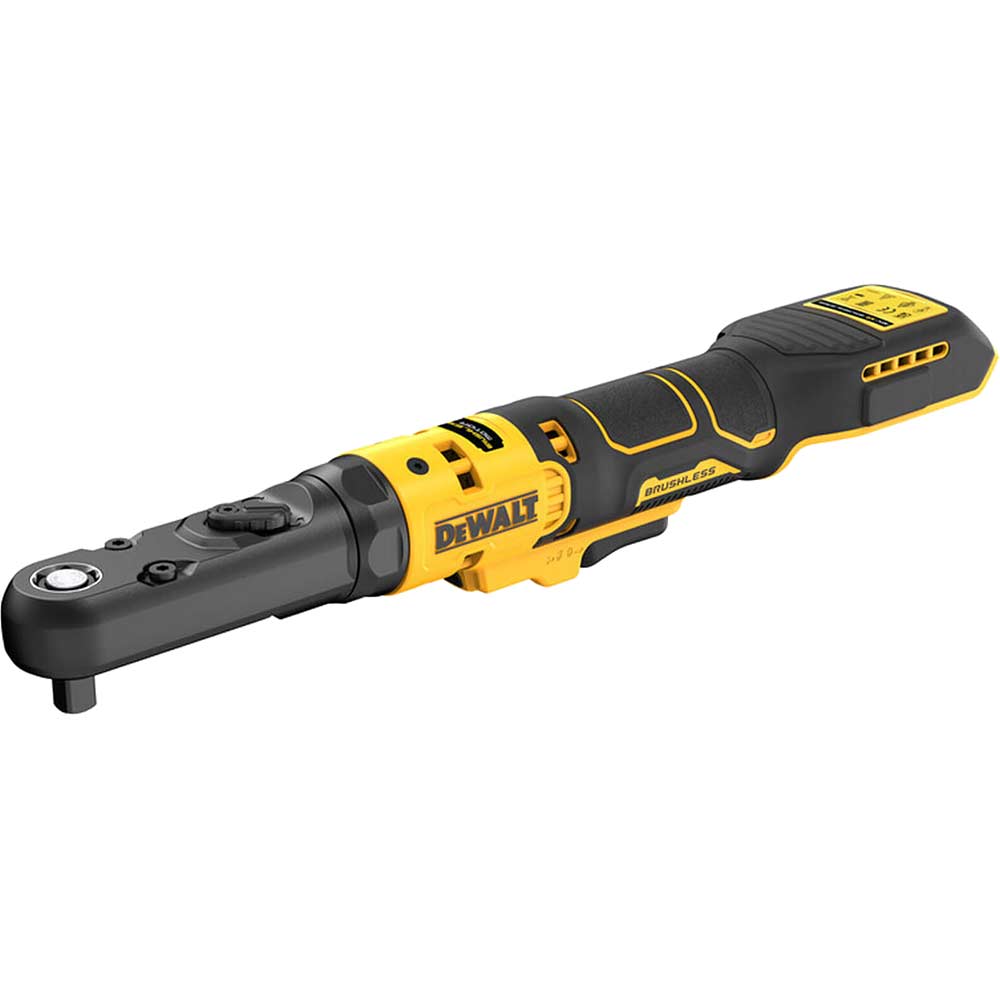

DeWalt DCF510N-XJ 18V XR Brushless 1/2″ Ratchet (Body Only)

Name: DeWalt DCF510N-XJ 18V XR Brushless 1/2″ Ratchet (Body Only)
Brand: DeWalt
SKU: DCF510N-XJ
Availability: InStock

101Nm1.2kg bare3 years (with registration)

DeWalt DCF510: 1/2" cordless ratchet, 101 Nm motor torque, 237 Nm by hand, up to 300 rpm, 1.2kg bare. 3/8" and 1/2" anvils (swappable).

Adds it to My Tools, kept on this device

Lowest price we track

£214.95at Tooled Up · + £5.95 delivery

View at Tooled Up ›

Prices from UK retailer feeds, updated daily.We may earn a commission

1/2"

Drive

101Nm

Max torque (motor)

300rpm

Top speed

1.2kg

Weight (bare)

Where it sits among 1/2" ratchets

Scaled against the 6 ratchets with a 1/2" drive we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Max torque (motor)101Nm

60Nm lowestBosch GRC 12V-60 1/2 SNhighest 108NmMilwaukee M12 FIR12G2

Top speed300rpm

175rpm lowestMilwaukee M12 FIR12highest 300rpmThis one

Weight (bare)1.2kg

0.77kg lightestMilwaukee M12 FIR12G2heaviest 1.3kgDeWalt DCF512E

Vibration (fastening)2.7m/s²

2.1m/s² lowestMilwaukee M12 FIR12highest 5.8m/s²Milwaukee M12 FIR12G2

Compare it with: + Milwaukee M12 FIR12G2 + Bosch GRC 12V-60 1/2 SN + Makita DWR180 + Einhell TE-RW 18/60 Li

Full specs

From DeWalt's own documentation. Checked 17/10/2026. Report a spec error ›

Drive & Torque

Drive1/2"

Other drives3/8" and 1/2" anvils (swappable)

TypeStandard

Max torque (motor)101 Nm

Max torque by hand237 Nm

Top speed300 rpm

Overall length381 mm

Power & Motor

Voltage18V

MotorBrushless

Physical & Build

Weight (bare)1.2 kg

Weight (with battery)1.81 kg

LED work light✓ Yes

Noise level79 dB(A) LpA / 87 dB(A) LwA

Vibration (fastening)2.7 m/s²

Powered by DeWalt 18V XR · 12

All 12 batteries that fit this tool, smallest first. Kits and chargers ›

DCBP034 1.7Ah · 30.6Wh 0.32kg 1.52kg from £78.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB183 2.0Ah · 36Wh 0.4kg 1.6kg from £44.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCBP318 3.5Ah · 63Wh 0.58kg 1.78kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB182 4.0Ah · 72Wh 0.61kg 1.81kg from £49.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB184 5.0Ah · 90Wh 0.62kg 1.82kg from £59.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB184B 5.0Ah · 90Wh 0.62kg 1.82kg No retailer price yet About this battery ›

DCBP518 5.0Ah · 90Wh 0.75kg 1.95kg from £122.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB546 6.0Ah · 108Wh · via DeWalt 18V/54V FlexVolt 1.08kg 2.28kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
