18V XR · Brushless DeWalt DCF514EN-XJ 18V XR Brushless 1/4″ Extended Ratchet (Body Only)

Ratchets · DeWalt 18V XR

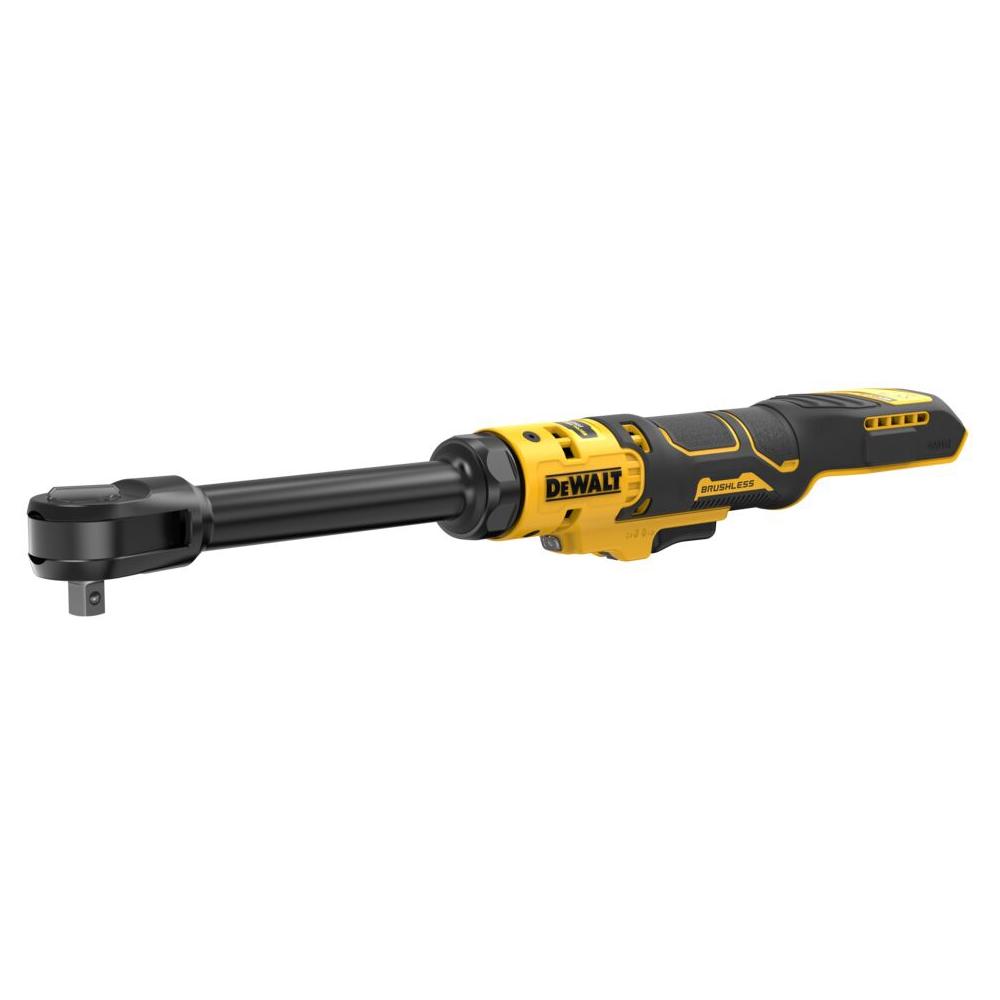

DeWalt DCF514EN-XJ 18V XR Brushless 1/4″ Extended Ratchet (Body Only)

Name: DeWalt DCF514EN-XJ 18V XR Brushless 1/4″ Extended Ratchet (Body Only)
Brand: DeWalt
SKU: DCF514EN-XJ
Availability: BackOrder

54Nm1.3kg bare3 years (with registration)

DeWalt DCF514E: 1/4" extended cordless ratchet, 54 Nm motor torque, 81 Nm by hand, up to 250 rpm, 1.3kg bare.

Adds it to My Tools, kept on this device

Lowest price we track

£233.95at Tooled Up · + £5.95 delivery · Available to order

View at Tooled Up ›

Prices from UK retailer feeds, updated daily.We may earn a commission

1/4"

Drive

54Nm

Max torque (motor)

250rpm

Top speed

1.3kg

Weight (bare)

Where it sits among 1/4" ratchets

Scaled against the 6 ratchets with a 1/4" drive we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Max torque (motor)54Nm

47.5Nm lowestMilwaukee M12 FHIR14LRhighest 61NmMilwaukee M12 FIR14G2

Top speed250rpm

250rpm lowestThis onehighest 550rpmMilwaukee M12 FIR14G2

Weight (bare)1.3kg

0.67kg lightestMilwaukee M12 FIR14G2heaviest 1.3kgThis one

Vibration (fastening)2.0m/s²

1.8m/s² lowestMilwaukee M12 FIR14highest 6.3m/s²Milwaukee M12 FIR14G2

Compare it with: + Milwaukee M12 FIR14 + Einhell TE-RW 18/60 Li + Bosch GRC 18V-60 + Makita DWR180

Full specs

From DeWalt's own documentation. Checked 17/10/2026. Report a spec error ›

Drive & Torque

Drive1/4"

TypeExtended reach

Max torque (motor)54 Nm

Max torque by hand81 Nm

Top speed250 rpm

Overall length462 mm

Power & Motor

Voltage18V

MotorBrushless

Physical & Build

Weight (bare)1.3 kg

Weight (with battery)1.91 kg

LED work light✓ Yes

Noise level80 dB(A) LpA / 88 dB(A) LwA

Vibration (fastening)2 m/s²

Powered by DeWalt 18V XR · 12

All 12 batteries that fit this tool, smallest first. Kits and chargers ›

DCBP034 1.7Ah · 30.6Wh 0.32kg 1.62kg from £78.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB183 2.0Ah · 36Wh 0.4kg 1.7kg from £44.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCBP318 3.5Ah · 63Wh 0.58kg 1.88kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB182 4.0Ah · 72Wh 0.61kg 1.91kg from £49.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB184 5.0Ah · 90Wh 0.62kg 1.92kg from £59.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB184B 5.0Ah · 90Wh 0.62kg 1.92kg No retailer price yet About this battery ›

DCBP518 5.0Ah · 90Wh 0.75kg 2.05kg from £122.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB546 6.0Ah · 108Wh · via DeWalt 18V/54V FlexVolt 1.08kg 2.38kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
