18V LXT · Brushless Makita DGA517Z 18V LXT Brushless 125mm Paddle Switch Angle Grinder (Body Only)

Angle Grinders · Makita 18V LXT

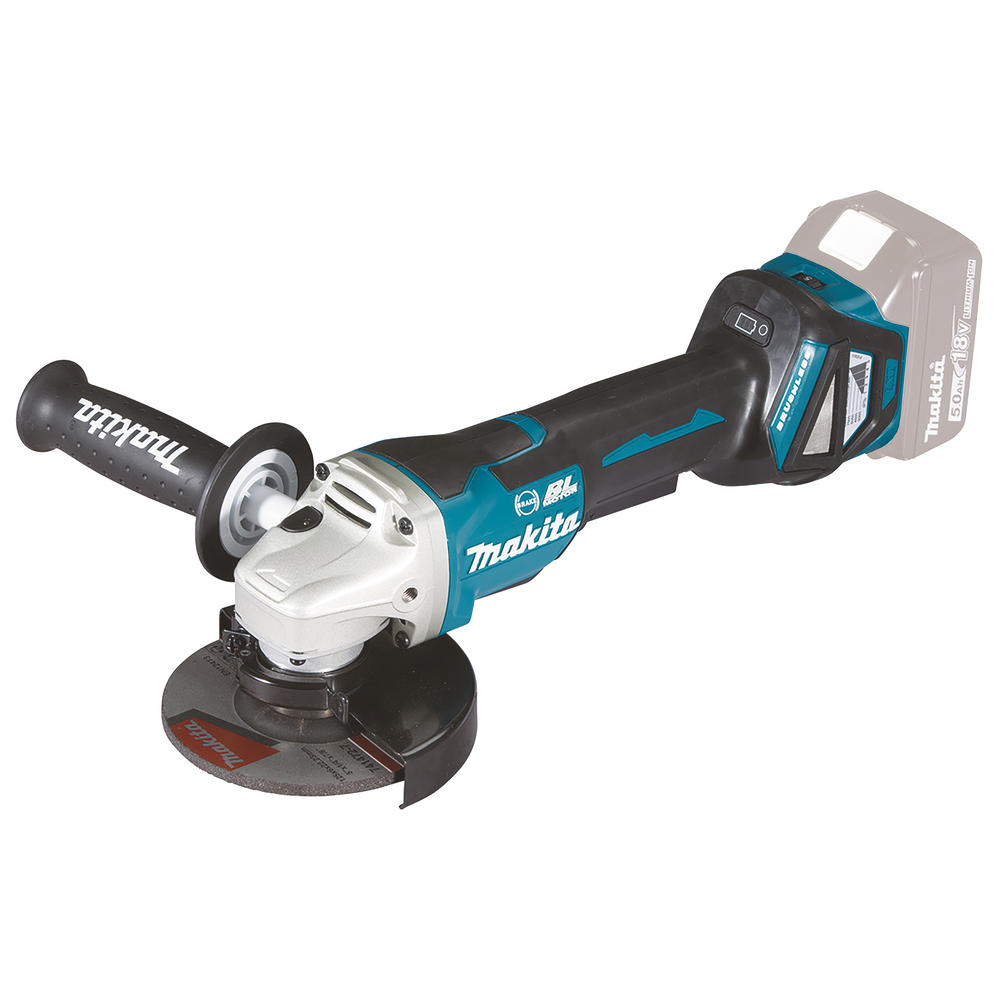

Makita DGA517Z 18V LXT Brushless 125mm Paddle Switch Angle Grinder (Body Only)

Name: Makita DGA517Z 18V LXT Brushless 125mm Paddle Switch Angle Grinder (Body Only)
Brand: Makita
SKU: DGA517Z
Availability: InStock

2.1kg bare18V3 years (with registration)

18V LXT brushless 125mm angle grinder. 8500rpm, M14 spindle. Paddle switch. AFT anti-kickback, brake and soft start. Bare unit.

Adds it to My Tools, kept on this device

How do you want it?2 ways to buy · tap one to see what's in the box

Lowest price we track

£194.95at Tooled Up · + £5.95 delivery

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£194.95 + £5.95 delivery£200.90View ›

My Tool Shed£194.95 + £5.95 delivery£200.90View ›

Machine Mart£199.00 + £4.99 delivery£203.99View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

125mm

Disc

8,500rpm

Max speed

2.1kg

Weight (bare)

Where it sits among 125mm angle grinders

Scaled against the 59 angle grinders with a 125mm disc we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Max speed8,500rpm

7,000rpm lowestDeWalt DCG412highest 12,000rpmDeWalt DWE4117

Weight (bare)2.1kg

1.57kg lightestEinhell TP-AG 18/125 F Li BLheaviest 2.9kgMakita GA5021C

Noise (LpA)79dB(A)

79dB(A) lowestThis onehighest 95dB(A)Bosch GWS 14-125 S

Compare it with: + Festool AGC 18-125 + Milwaukee M18 FSAG125XB + Einhell AXXIO 18/125 Q + Bosch GWS 18V-11 S

Full specs

From Makita's own documentation. Checked 24/06/2026. Report a spec error ›

Disc & Cutting

Disc diameter125 mm

Disc bore22.23 mm

Disc mount systemM14 (Standard)

Spindle threadM14

Voltage18V

Extractor auto-startNo

Year released2017

Safety

Electronic brake✓ Yes

Soft start✓ Yes

Electronic kickback brake✓ Yes

Kickback technologyAFT (Active Feedback sensing Technology)

Overload protection✓ Yes

Tool-free nutNo (standard nut + spanner)

Performance

No-load speed8,500 rpm

MotorBrushless

Handle & Control

Switch typePaddle

Side handle✓ Yes

Lock wrench✓ Yes

Physical & Build

Weight (bare)2.1 kg

Weight (with battery)2.7 kg

Noise level79 dB(A) (LpA)

Vibration6.0 m/s²

The verdictOur take

Makita's 18V LXT cordless 125 all-rounder, on a paddle deadman switch. Brushless, with an electric brake, soft start, Star Protection and AFT bind-sensing shut-off. If you want one 125mm grinder for the 18V platform and like a safety paddle, this is the natural choice; the DGA513 is the same tool with a lock-on slide switch.

Powered by Makita 18V LXT · 7

All 7 batteries that fit this tool, smallest first. Kits and chargers ›

BL1820B 2.0Ah · 36Wh 0.38kg 2.48kg from £49.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1830B 3.0Ah · 54Wh 0.64kg 2.74kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1840B 4.0Ah · 72Wh 0.64kg 2.74kg from £69.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1850B 5.0Ah · 90Wh 0.63kg 2.73kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1860B 6.0Ah · 108Wh 0.66kg 2.76kg from £79.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1890 9.0Ah · 162Wh 0.97kg 3.07kg from £119.98at Machine Mart + £4.99 delivery View at Machine Mart ›

BL18120 12.0Ah · 216Wh 1.3kg 3.4kg from £129.95at Tooled Up + £6.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.
