18V LXT · Brushless Makita DHS660Z 18V LXT Brushless 165mm Circular Saw (Body Only)

Circular Saws · Makita 18V LXT

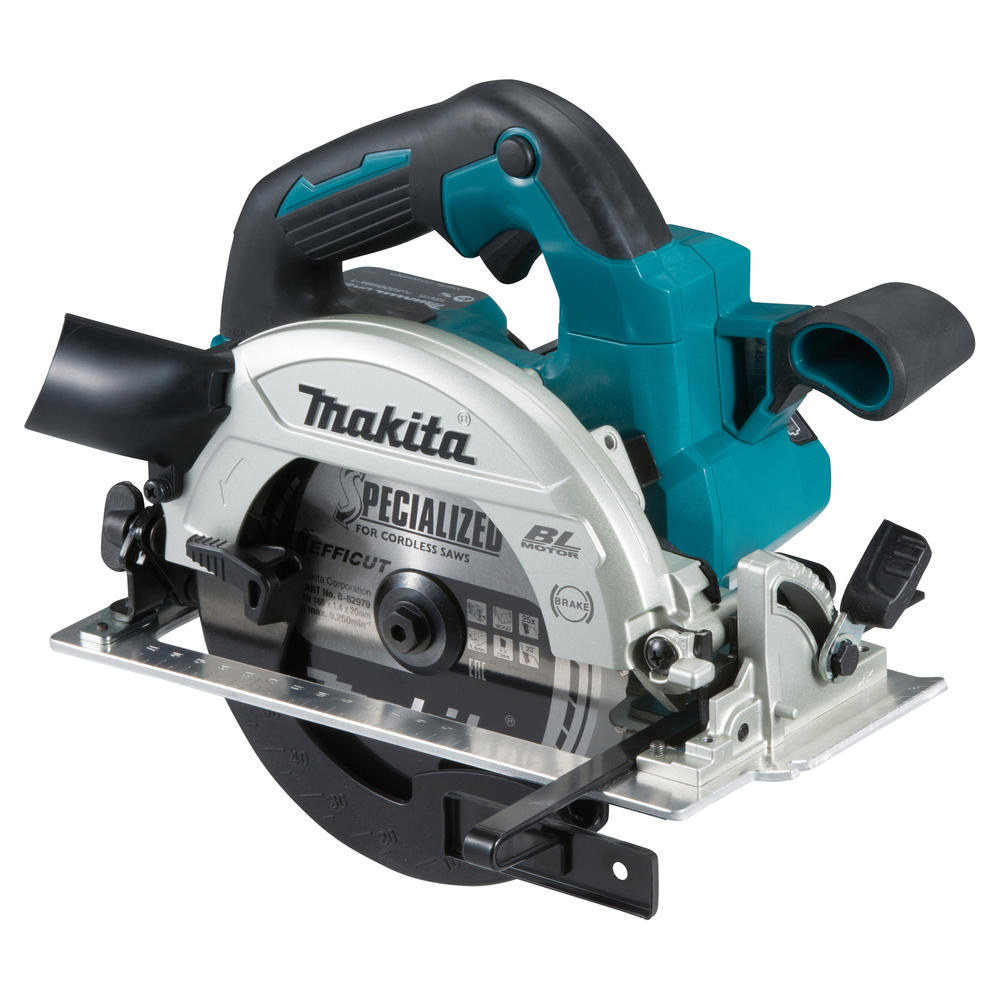

Makita DHS660Z 18V LXT Brushless 165mm Circular Saw (Body Only)

Name: Makita DHS660Z 18V LXT Brushless 165mm Circular Saw (Body Only)
Brand: Makita
SKU: DHS660Z
Availability: InStock

2.6kg bare18V3 years (with registration)

18V LXT 165mm brushless circular saw with the blade on the RIGHT and side-mounted battery (compact, low CoG). 57mm @90deg, 5000rpm, Auto Torque Drive, twin LED, electric brake, blower. Bare.

Adds it to My Tools, kept on this device

Lowest price we track

£229.00at Machine Mart · + £4.99 delivery

View at Machine Mart ›

Compare retailersTotal with delivery

Machine Mart Lowest£229.00 + £4.99 delivery£233.99View ›

Tooled Up£234.95 + £5.95 delivery · Available to order£240.90View ›

My Tool Shed£234.95 + £5.95 delivery · Available to order£240.90View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

165mm

Blade

57mm

Cut depth (90°)

5,000rpm

Max speed

2.6kg

Weight (bare)

Where it sits among 165mm circular saws

Scaled against the 19 circular saws with a 165mm blade we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Cut depth at 90°57mm

54mm lowestMilwaukee HD18 CShighest 66mmMilwaukee M18 FCSDC165

Cut depth at 45°41mm

35mm lowestEinhell TE-CS 18/165-1 Lihighest 46mmMilwaukee M18 FCSDC165

Max bevel angle50°

45° lowestEinhell TE-CS 18/165-1 Lihighest 50°This one

Weight (bare)2.6kg

2.4kg lightestMakita DSS611heaviest 3.56kgMilwaukee M18 CCS55

Compare it with: + Milwaukee M18 FCS552 + DeWalt DCS391 + Bosch GKS 18V-57-2 + Einhell TP-CS 18/165 Li BL

Full specs

From Makita's own documentation. Checked 21/06/2026. Report a spec error ›

Cutting

Saw typeWood

Blade diameter165 mm

Blade bore20 mm

Max depth (90°)57 mm

Max depth (45°)41 mm

Bevel range0–50°

Blade included✓ Yes

Rip fence included✓ Yes

Power & Motor

Voltage18V

MotorBrushless

No-load speed5,000 rpm

Dust & Rail

Dust port size35mm inner / 40mm outer

Extractor hoseOther extractor hoses: check the adaptor fits this port

Extractor auto-startNo

Physical & Build

Weight (bare)2.6 kg

Weight (with battery)3.2 kg

LED work light✓ Yes

Case typeNone

Noise level93 dB(A) LpA

Vibration2.5 m/s²

The verdictOur take

Makita's compact brushless 165mm saw, and the one to look at if balance and handling matter most. On spec the brushless motor lifts speed to 5000rpm with 57mm of depth at 90°, and the blade-right, side-battery layout keeps it light at 2.6kg bare with a low centre of gravity that many find easier to control. It is the quietest of the 165mm LXT saws at 93 dB(A), with an LED fitted. A strong everyday pick for second-fix and general site work on Makita 18V.

Powered by Makita 18V LXT · 7

All 7 batteries that fit this tool, smallest first. Kits and chargers ›

BL1820B 2.0Ah · 36Wh 0.38kg 2.98kg from £49.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1830B 3.0Ah · 54Wh 0.64kg 3.24kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1840B 4.0Ah · 72Wh 0.64kg 3.24kg from £69.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1850B 5.0Ah · 90Wh 0.63kg 3.23kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1860B 6.0Ah · 108Wh 0.66kg 3.26kg from £79.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1890 9.0Ah · 162Wh 0.97kg 3.57kg from £119.98at Machine Mart + £4.99 delivery View at Machine Mart ›

BL18120 12.0Ah · 216Wh 1.3kg 3.9kg from £129.95at Tooled Up + £6.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.
