DHS680 Circular Saw

£199.95Body only · at Tooled Up · + £5.95 delivery

View at Tooled Up › We may earn a commission

‹ Circular Saws

18V LXT · Brushless Makita DHS680Z 18V LXT Brushless 165mm Circular Saw (Body Only)

Circular Saws · Makita 18V LXT

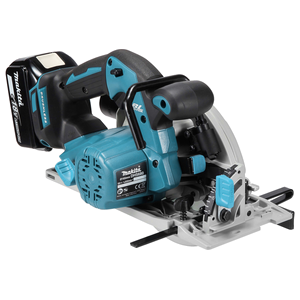

Makita DHS680Z 18V LXT Brushless 165mm Circular Saw (Body Only)

Name: Makita DHS680Z 18V LXT Brushless 165mm Circular Saw (Body Only)
Brand: Makita
SKU: DHS680Z
Availability: InStock

2.7kg bare18V3 years (with registration)

18V LXT 165mm brushless circular saw with auto high-torque/high-speed mode. 57mm @90deg, 41mm @45deg, 5000rpm, 2.7kg bare, LED, parallel guide. Body only.

Adds it to My Tools, kept on this device

How do you want it?2 ways to buy · tap one to see what's in the box

Lowest price we track

£199.95at Tooled Up · + £5.95 delivery

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£199.95 + £5.95 delivery£205.90View ›

My Tool Shed£199.95 + £5.95 delivery£205.90View ›

Machine Mart£219.00 + £4.99 delivery£223.99View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

165mm

Blade

57mm

Cut depth (90°)

5,000rpm

Max speed

2.7kg

Weight (bare)

Where it sits among 165mm circular saws

Scaled against the 19 circular saws with a 165mm blade we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Cut depth at 90°57mm

54mm lowestMilwaukee HD18 CShighest 66mmMilwaukee M18 FCSDC165

Cut depth at 45°41mm

35mm lowestEinhell TE-CS 18/165-1 Lihighest 46mmMilwaukee M18 FCSDC165

Max bevel angle50°

45° lowestEinhell TE-CS 18/165-1 Lihighest 50°This one

Weight (bare)2.7kg

2.4kg lightestMakita DSS611heaviest 3.56kgMilwaukee M18 CCS55

Compare it with: + DeWalt DCS565 + Milwaukee HD18 CS + Bosch GKS 18V-57-2 GX + Einhell TE-CS 18/165-1 Li

Full specs

From Makita's own documentation. Checked 21/06/2026. Report a spec error ›

Cutting

Saw typeWood

Blade diameter165 mm

Blade bore20 mm

Max depth (90°)57 mm

Max depth (45°)41 mm

Bevel range0–50°

Rip fence included✓ Yes

Power & Motor

Voltage18V

MotorBrushless

No-load speed5,000 rpm

Dust & Rail

Dust port size35mm inner / 40mm outer

Extractor hoseOther extractor hoses: check the adaptor fits this port

Compatible railsMakita rail (FS-pattern: fits Festool and Milwaukee), via 196953-0 adapter

Extractor auto-startNo

Physical & Build

Weight (bare)2.7 kg

Weight (with battery)3.3 kg

LED work light✓ Yes

Case typeNone

Noise level94 dB(A) LpA

Vibration2.5 m/s²

The verdictOur take

The blade-left brushless 165mm saw, aimed at users who want a clear sightline and a little more intelligence in the motor. On spec it runs at 5000rpm with 57mm of depth, and adds Automatic Torque Drive, which shifts between high speed and high torque depending on load. It also takes a guide rail, via the 196953-0 adapter, which suits anyone wanting occasional rail accuracy. The trade-off against the DHS660 is a slightly heavier body (2.7kg bare against 2.6kg); both have an LED and come with a parallel guide. A good choice where sightline and rail capability matter.

Powered by Makita 18V LXT · 7

All 7 batteries that fit this tool, smallest first. Kits and chargers ›

BL1820B 2.0Ah · 36Wh 0.38kg 3.08kg from £49.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1830B 3.0Ah · 54Wh 0.64kg 3.34kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1840B 4.0Ah · 72Wh 0.64kg 3.34kg from £69.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1850B 5.0Ah · 90Wh 0.63kg 3.33kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1860B 6.0Ah · 108Wh 0.66kg 3.36kg from £79.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1890 9.0Ah · 162Wh 0.97kg 3.67kg from £119.98at Machine Mart + £4.99 delivery View at Machine Mart ›

BL18120 12.0Ah · 216Wh 1.3kg 4.0kg from £129.95at Tooled Up + £6.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.
