DCF504 Ratchet

£185.95at Tooled Up · + £5.95 delivery · Available to order

View at Tooled Up › We may earn a commission

‹ Ratchets

12V XR

Ratchets · DeWalt 12V XR

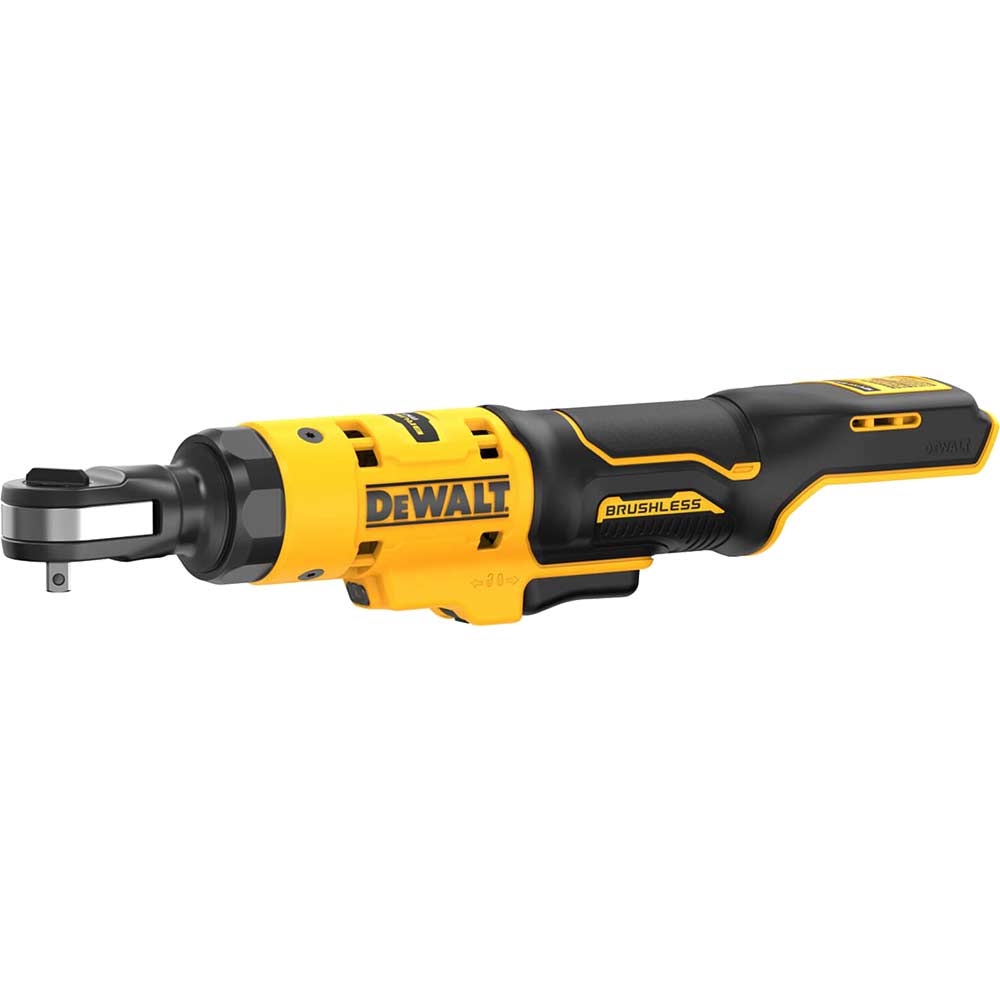

DeWalt DCF504N-XJ 12V XR 1/4″ Ratchet (Body Only)

Name: DeWalt DCF504N-XJ 12V XR 1/4″ Ratchet (Body Only)
Brand: DeWalt
SKU: DCF504N-XJ
Availability: BackOrder

54.23Nm0.75kg bare3 years (with registration)

DeWalt DCF504: 1/4" cordless ratchet, 54.23 Nm motor torque, up to 250 rpm, 0.75kg bare.

Adds it to My Tools, kept on this device

Lowest price we track

£185.95at Tooled Up · + £5.95 delivery · Available to order

View at Tooled Up ›

Prices from UK retailer feeds, updated daily.We may earn a commission

1/4"

Drive

54.23Nm

Max torque (motor)

250rpm

Top speed

0.75kg

Weight (bare)

Where it sits among 1/4" ratchets

Scaled against the 6 ratchets with a 1/4" drive we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Max torque (motor)54.23Nm

47.5Nm lowestMilwaukee M12 FHIR14LRhighest 61NmMilwaukee M12 FIR14G2

Top speed250rpm

250rpm lowestThis onehighest 550rpmMilwaukee M12 FIR14G2

Weight (bare)0.75kg

0.67kg lightestMilwaukee M12 FIR14G2heaviest 1.3kgDeWalt DCF514E

Vibration (fastening)≤ 2.5m/s²

The maker gives a limit: this figure or less. Placed at the limit; measured figures set the scale.

1.8m/s² lowestMilwaukee M12 FIR14highest 6.3m/s²Milwaukee M12 FIR14G2

Compare it with: + Milwaukee M12 FIR14G2 + Bosch GRC 12V-60 3/8 SN + Makita WR100D + Einhell TE-RW 18/60 Li

Full specs

From DeWalt's own documentation. Checked 17/10/2026. Report a spec error ›

Drive & Torque

Drive1/4"

TypeStandard

Max torque (motor)54.23 Nm

Top speed250 rpm

Overall length305 mm

Voltage12V

Physical & Build

Weight (bare)0.75 kg

Weight (with battery)1 kg

LED work light✓ Yes

Noise level74 dB(A) LpA / 85 dB(A) LwA

Vibration (fastening)< 2.5 m/s²

Powered by DeWalt 12V XR · 3

All 3 batteries that fit this tool, smallest first. Kits and chargers ›

DCB127 2.0Ah · 21.6Wh 0.22kg 0.97kg No retailer price yet About this battery ›

DCB124 3.0Ah · 32.4Wh 0.25kg 1.0kg No retailer price yet About this battery ›

DCB126 5.0Ah · 54Wh 0.46kg 1.21kg from £54.95at Tooled Up + £5.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
