18V XR · Brushless DeWalt DCF513N-XJ 18V XR Brushless 3/8″ Ratchet (Body Only)

Ratchets · DeWalt 18V XR

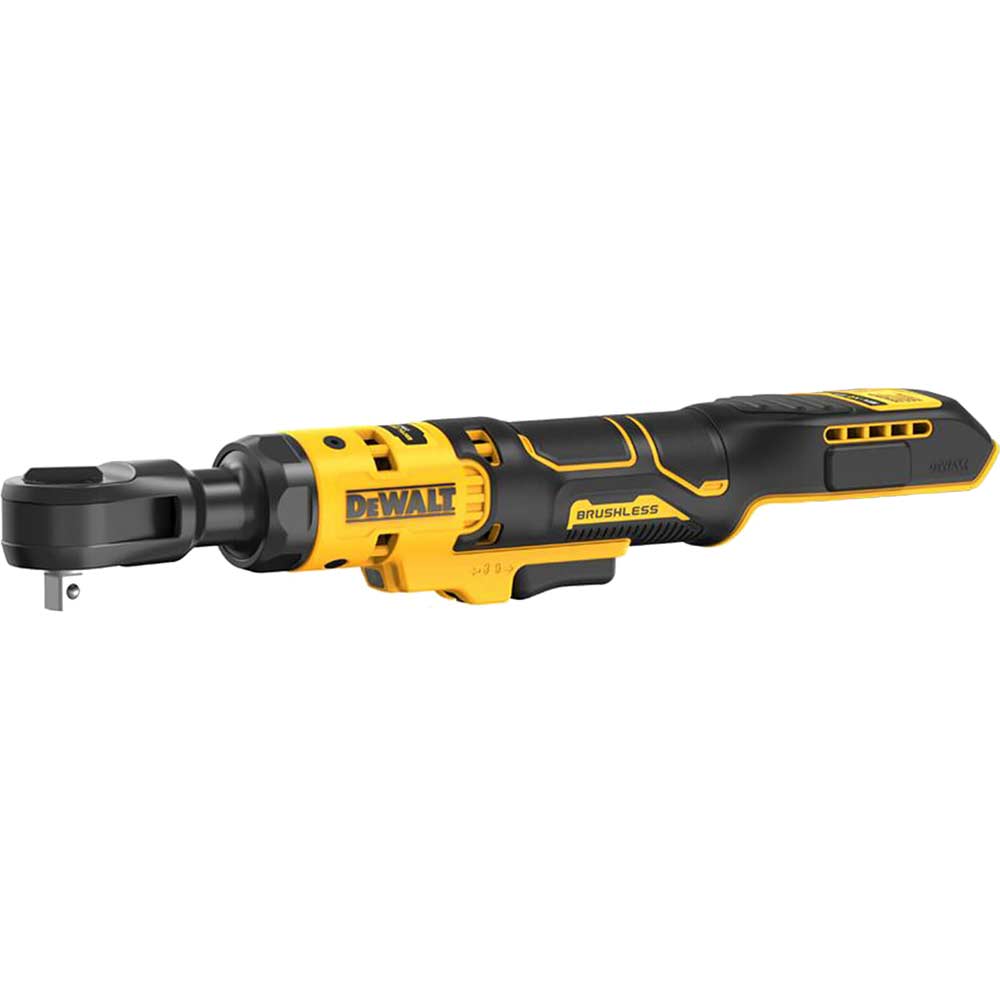

DeWalt DCF513N-XJ 18V XR Brushless 3/8″ Ratchet (Body Only)

Name: DeWalt DCF513N-XJ 18V XR Brushless 3/8″ Ratchet (Body Only)
Brand: DeWalt
SKU: DCF513N-XJ
Availability: InStock

95Nm1.1kg bare3 years (with registration)

DeWalt DCF513: 3/8" cordless ratchet, 95 Nm motor torque, 237 Nm by hand, up to 250 rpm, 1.1kg bare.

Adds it to My Tools, kept on this device

Lowest price we track

£189.95at Tooled Up · + £5.95 delivery

View at Tooled Up ›

Prices from UK retailer feeds, updated daily.We may earn a commission

3/8"

Drive

95Nm

Max torque (motor)

250rpm

Top speed

1.1kg

Weight (bare)

Where it sits among 3/8" ratchets

Scaled against the 15 ratchets with a 3/8" drive we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Max torque (motor)95Nm

47Nm lowestMilwaukee M12 IRhighest 95NmThis one

Top speed250rpm

200rpm lowestMilwaukee M12 FIR38LRhighest 800rpmMakita WR100D

Weight (bare)1.1kg

0.7kg lightestMilwaukee M12 IRheaviest 1.3kgDeWalt DCF513E

Vibration (fastening)5.0m/s²

2.3m/s² lowestBosch GRC 12V-60 3/8 SNhighest 7.5m/s²Bosch GRC 18V-60

Compare it with: + Makita DWR180 + Einhell TE-RW 18/60 Li + Bosch GRC 18V-60 + Milwaukee M12 FIR38

Full specs

From DeWalt's own documentation. Checked 17/10/2026. Report a spec error ›

Drive & Torque

Drive3/8"

TypeStandard

Max torque (motor)95 Nm

Max torque by hand237 Nm

Top speed250 rpm

Overall length360 mm

Power & Motor

Voltage18V

MotorBrushless

Physical & Build

Weight (bare)1.1 kg

Weight (with battery)1.71 kg

LED work light✓ Yes

Noise level85 dB(A) LpA / 93 dB(A) LwA

Vibration (fastening)5 m/s²

Powered by DeWalt 18V XR · 12

All 12 batteries that fit this tool, smallest first. Kits and chargers ›

DCBP034 1.7Ah · 30.6Wh 0.32kg 1.42kg from £78.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB183 2.0Ah · 36Wh 0.4kg 1.5kg from £44.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCBP318 3.5Ah · 63Wh 0.58kg 1.68kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB182 4.0Ah · 72Wh 0.61kg 1.71kg from £49.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB184 5.0Ah · 90Wh 0.62kg 1.72kg from £59.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB184B 5.0Ah · 90Wh 0.62kg 1.72kg No retailer price yet About this battery ›

DCBP518 5.0Ah · 90Wh 0.75kg 1.85kg from £122.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB546 6.0Ah · 108Wh · via DeWalt 18V/54V FlexVolt 1.08kg 2.18kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
