18V/54V FlexVolt · Brushless DeWalt DCS520N 54V XR FLEXVOLT Brushless 165mm Cordless Plunge Saw (Body Only)
Plunge Saws · DeWalt 18V/54V FlexVolt

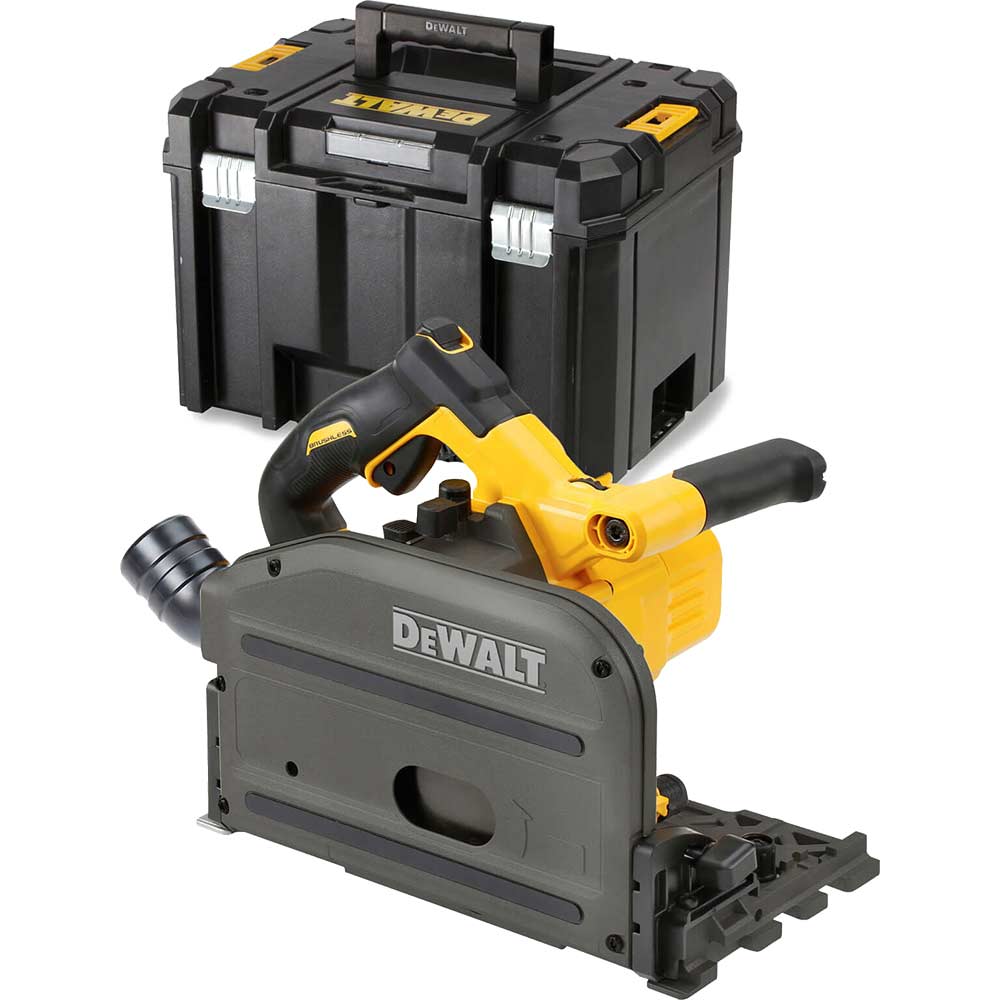

DeWalt DCS520N 54V XR FLEXVOLT Brushless 165mm Cordless Plunge Saw (Body Only)

4.7kg bare54V XR FlexVolt3 years (with registration)

DeWalt DCS520. Cordless 54V XR FlexVolt 165mm plunge saw. 59mm cut depth at 90°, 44mm at 45°. -1° to 47° bevel. AirLock dust port. Runs on DeWalt rail only. 4.7kg. Body only.

Adds it to My Tools, kept on this device
How do you want it?5 ways to buy · tap one to see what's in the box
Lowest price we track
£429.99at Tooled Up · + £5.95 delivery
Compare retailersTotal with delivery
Tooled Up Lowest£429.99 + £5.95 delivery£435.94View ›
My Tool Shed£429.99 + £5.95 delivery£435.94View ›
Prices from UK retailer feeds, updated daily.We may earn a commission
165mm
Blade
59mm
Cut depth (90°)
4,200rpm
Max speed
4.7kg
Weight (bare)

Where it sits among 165mm plunge saws

Scaled against the 14 plunge saws with a 165mm blade we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Cut depth at 90°, off the rail59mm
56mm lowestEinhell TE-PS 165highest 66mmHiKOKI C3606DPA
Max bevel angle47°
Weight (bare)4.7kg
3.7kg lightestMakita SP001Gheaviest 5.1kgDeWalt DWS520

Full specs

From DeWalt's own documentation. Checked 24/06/2026. Report a spec error ›

Cutting

Saw typePlunge
Blade diameter165 mm
Blade bore20 mm
Max depth (90°), off rail59 mm
Max depth on rail55 mm
Bevel range-1° to 47°

Physical & Build

Weight (bare)4.7 kg
Weight (with battery)5.78 kg
Noise level82.2 dB(A) LpA / 93.2 dB(A) LwA
Vibration1.1 m/s²

Power & Motor

Voltage54V XR FlexVolt
MotorBrushless
No-load speed4,200 rpm

Dust & Rail

Dust port sizeAirLock (35mm inner)
Extractor hose✓ Fits DeWalt AirLock extractor hoses directly (6 extractors listed)
Compatible railsDeWalt guide rail
Extractor auto-startYes (built into tool)
Auto-start systemDeWalt Wireless Tool Control built into the tool: pairs with a WTC extractor (e.g. DCV586M, DWV905)
The verdictOur take

The DCS520 is the quietest saw in this entire group by a clear margin at 82.2 dB(A), around 10 dB below most rivals, thanks to its brushless FlexVolt motor, and it pairs that with low 1.1 m/s² vibration and a useful 59mm cut depth (55mm on rail). It runs DeWalt's 54V FlexVolt batteries and has DeWalt's Wireless Tool Control built in, so it can start a WTC extractor such as the DCV586M. The catch for track-saw buyers is rails: DeWalt uses a proprietary profile, so it runs only on DeWalt rails, not Festool or Makita. We rate it the standout cordless choice for noise-sensitive sites and FlexVolt owners; if rail interchangeability matters, the Milwaukee FPS55 or a Makita is more flexible.

Powered by DeWalt 18V/54V FlexVolt · 4

All 4 batteries that fit this tool, smallest first. Kits and chargers ›

DCB546 6.0Ah · 108Wh 1.08kg 5.78kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›
DCB547 9.0Ah · 162Wh 1.46kg 6.16kg from £119.95at Tooled Up + £6.95 delivery View at Tooled Up ›
DCB548 12.0Ah · 216Wh 1.46kg 6.16kg from £229.95at Tooled Up + £5.95 delivery View at Tooled Up ›
DCB549 15.0Ah · 270Wh 2.12kg 6.82kg from £259.95at Tooled Up + £5.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt
Register with DeWalt ›
Register within 28 days of buying Own one? Add it to My Tools and we'll remind you before the 28 days run out

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
