DCS565 Circular Saw

£149.95Body only · at Tooled Up · + £5.95 delivery

View at Tooled Up › We may earn a commission

‹ Circular Saws

18V XR · Brushless DeWalt DCS565N-XJ 18V XR Brushless 165mm Circular Saw (Body Only)

Circular Saws · DeWalt 18V XR

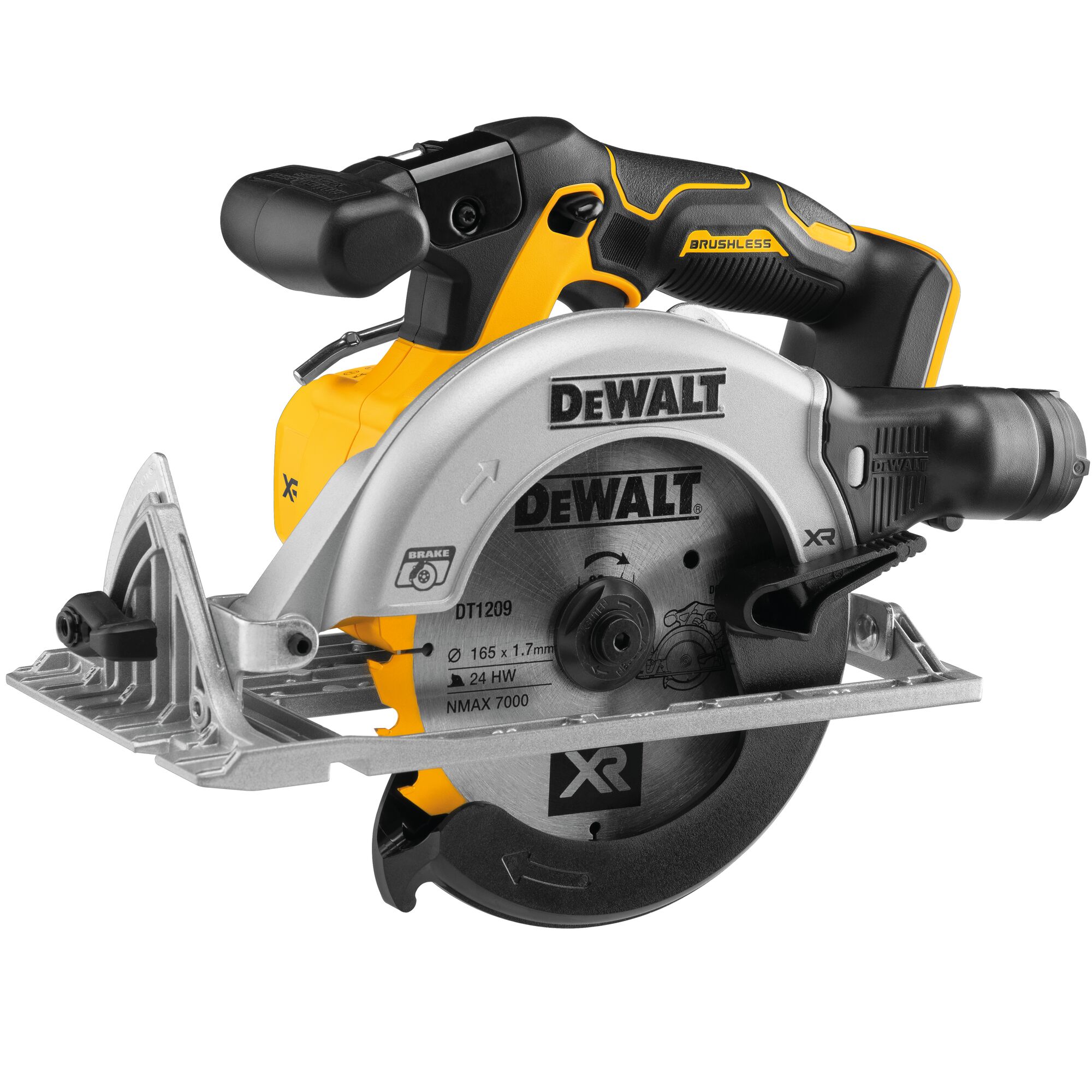

DeWalt DCS565N-XJ 18V XR Brushless 165mm Circular Saw (Body Only)

Name: DeWalt DCS565N-XJ 18V XR Brushless 165mm Circular Saw (Body Only)
Brand: DeWalt
SKU: DCS565N-XJ
Availability: InStock

2.8kg bare18V3 years (with registration)

18V XR brushless 165mm circular saw. 55mm cut depth at 90°. 50° bevel. Rafter hook, AirLock dust port, LED. Aluminium base. Bare unit.

Adds it to My Tools, kept on this device

How do you want it?2 ways to buy · tap one to see what's in the box

Lowest price we track

£149.95at Tooled Up · + £5.95 delivery

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£149.95 + £5.95 delivery£155.90View ›

My Tool Shed£149.95 + £5.95 delivery£155.90View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

165mm

Blade

55mm

Cut depth (90°)

4,950rpm

Max speed

2.8kg

Weight (bare)

Where it sits among 165mm circular saws

Scaled against the 19 circular saws with a 165mm blade we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Cut depth at 90°55mm

54mm lowestMilwaukee HD18 CShighest 66mmMilwaukee M18 FCSDC165

Cut depth at 45°42mm

35mm lowestEinhell TE-CS 18/165-1 Lihighest 46mmMilwaukee M18 FCSDC165

Max bevel angle50°

45° lowestEinhell TE-CS 18/165-1 Lihighest 50°This one

Weight (bare)2.8kg

2.4kg lightestMakita DSS611heaviest 3.56kgMilwaukee M18 CCS55

Compare it with: + Makita DHS680 + Milwaukee M18 CCS55 + Bosch GKS 18V-57 G + Einhell TP-CS 18/165 Li BL

Full specs

Taken from the manufacturer's documentation. Our full check on this tool is still in progress. Report a spec error ›

Cutting

Saw typeWood

Blade diameter165 mm

Blade bore20 mm

Max depth (90°)55 mm

Max depth (45°)42 mm

Bevel range0–50°

Rip fence included✓ Yes

Kickback technologyNo

Power & Motor

Voltage18V

Power808 W

MotorBrushless

No-load speed4,950 rpm

Dust & Rail

Dust port sizeAirLock

Extractor hose✓ Fits DeWalt AirLock extractor hoses directly (6 extractors listed)

Extractor auto-startNo

Physical & Build

Weight (bare)2.8 kg

Weight (with battery)3.41 kg

LED work light✓ Yes

Noise level94 dB(A) LpA / 105 dB(A) LwA

Vibration2.5 m/s²

The verdictOur take

A neat 165mm brushless saw on the 18V XR platform, sitting between the compact ATOMIC saws and the full 184 and 190mm models. On spec it gives 55mm of depth at 90° and bevels to 50° at just under 5000rpm, with a light 2.8kg body. Noise is moderate at 94 dB(A), vibration stays under 2.5 m/s², and a rip fence is included. A sensible single-battery saw for second-fix and general work where a 190mm saw would be more than you need.

Powered by DeWalt 18V XR · 12

All 12 batteries that fit this tool, smallest first. Kits and chargers ›

DCBP034 1.7Ah · 30.6Wh 0.32kg 3.12kg from £78.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB183 2.0Ah · 36Wh 0.4kg 3.2kg from £44.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCBP318 3.5Ah · 63Wh 0.58kg 3.38kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB182 4.0Ah · 72Wh 0.61kg 3.41kg from £49.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB184 5.0Ah · 90Wh 0.62kg 3.42kg from £59.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB184B 5.0Ah · 90Wh 0.62kg 3.42kg No retailer price yet About this battery ›

DCBP518 5.0Ah · 90Wh 0.75kg 3.55kg from £122.95at Tooled Up + £5.95 delivery View at Tooled Up ›

DCB546 6.0Ah · 108Wh · via DeWalt 18V/54V FlexVolt 1.08kg 3.88kg from £99.95at Tooled Up + £5.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.

Warranty · 3yr

Up to 3 years1 year as standard, 3 once you register it with DeWalt

Register within 4 weeks. Batteries/chargers excluded (PowerStack eligible). Nailers and other fastening tools are excluded and keep 1 year. Kit tools registered individually.

Warranty terms are set by the maker and can change. Always confirm current cover on their site before you buy.
