DA333D Angle Drill

£74.95at Tooled Up · + £5.95 delivery

View at Tooled Up › We may earn a commission

‹ Angle Drills

12V CXT

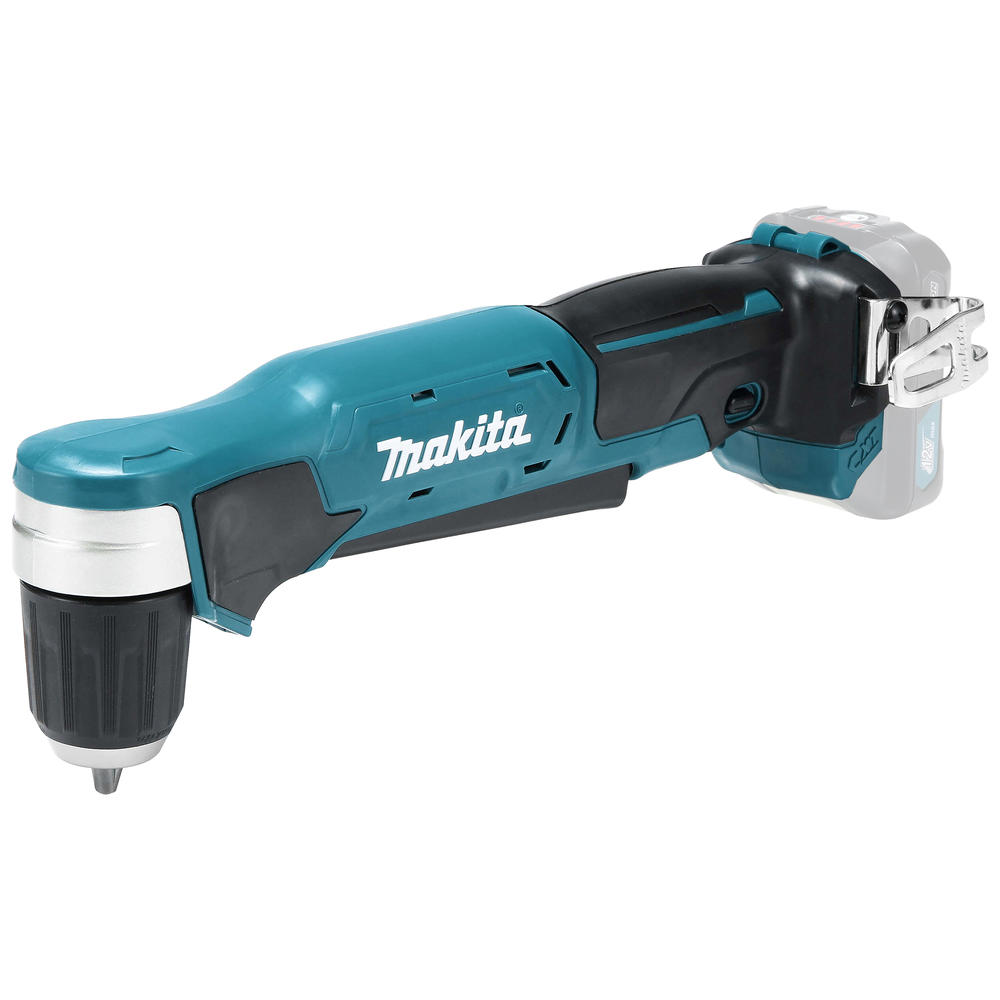

Makita DA333D 12V Max CXT Angle Drill (Body Only)

Angle Drills · Makita 12V CXT

Makita DA333D 12V Max CXT Angle Drill (Body Only)

Name: Makita DA333D 12V Max CXT Angle Drill (Body Only)
Brand: Makita
SKU: DA333DZ
Availability: InStock

1-speed0.99kg bare3 years (with registration)

Makita DA333D 12V CXT compact angle drill: 84mm head, 0–1,100rpm, 10mm keyless chuck, about 1kg bare. Body only.

Adds it to My Tools, kept on this device

Lowest price we track

£74.95at Tooled Up · + £5.95 delivery

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£74.95 + £5.95 delivery£80.90View ›

My Tool Shed£74.95 + £5.95 delivery£80.90View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

84mm

Head length

24mm

Self-feed bit

0.99kg

Weight (bare)

Where it sits among compact angle drills

Scaled against the 11 angle drills (compact right-angle) we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Max self-feed bit24mm

24mm lowestThis onehighest 50mmMakita DA3011F

Weight (bare)0.99kg

0.99kg lightestThis oneheaviest 1.6kgMakita DA3011F

Max drilling, wood12mm

10mm lowestBosch GWB 12V-10highest 28mmHiKOKI DN18DSL

Top speed1,100rpm

800rpm lowestMilwaukee C12 RADhighest 2,400rpmMakita DA3011F

Compare it with: + Milwaukee C12 RAD + Bosch GWB 12V-10 + DeWalt DCD740 + Einhell TE-AD 18 Li

Full specs

From Makita's own documentation. Checked 27/09/2026. Report a spec error ›

Performance

TypeCompact right-angle

Speed settings1

No-load speed0–1,100 rpm

Voltage12V

Physical & Build

Weight (bare)0.99 kg

Weight (with battery)1.37 kg

LED work light✓ Yes

Noise level71 dB(A) LpA

Vibration3.0 m/s²

What It Can Bore

Head length84 mm

Max self-feed bit24 mm

Max auger bit18 mm

Max wood12 mm

Max steel10 mm

Chuck size0.8–10mm

Chuck typeKeyless

The verdictOur take

The Makita DA333D is a 12V max CXT compact angle drill with an 84mm head, a single speed of 1,100rpm and a 10mm keyless chuck, at 0.99kg bare. It drills 12mm in wood and 10mm in steel, and takes augers to 18mm and self-feed bits to 24mm, so it is for light drilling in tight spots rather than big holes. We rate it a handy tight-space drill for CXT owners; the 18V DDA351 bores bigger, with self-feed bits to 50mm.

Powered by Makita 12V CXT · 2

All 2 batteries that fit this tool, smallest first. Kits and chargers ›

BL1021B 2.0Ah · 21.6Wh 0.21kg 1.2kg from £38.99at Machine Mart + £4.99 delivery View at Machine Mart ›

BL1041B 4.0Ah · 43.2Wh 0.38kg 1.37kg from £49.00at Machine Mart + £4.99 delivery View at Machine Mart ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.
