DGA504 Angle Grinder

£134.95at Tooled Up · + £6.95 delivery

View at Tooled Up › We may earn a commission

‹ Angle Grinders

18V LXT · Brushless Makita DGA504Z 18V LXT Brushless 125mm Slide Switch Angle Grinder (Body Only)

Angle Grinders · Makita 18V LXT

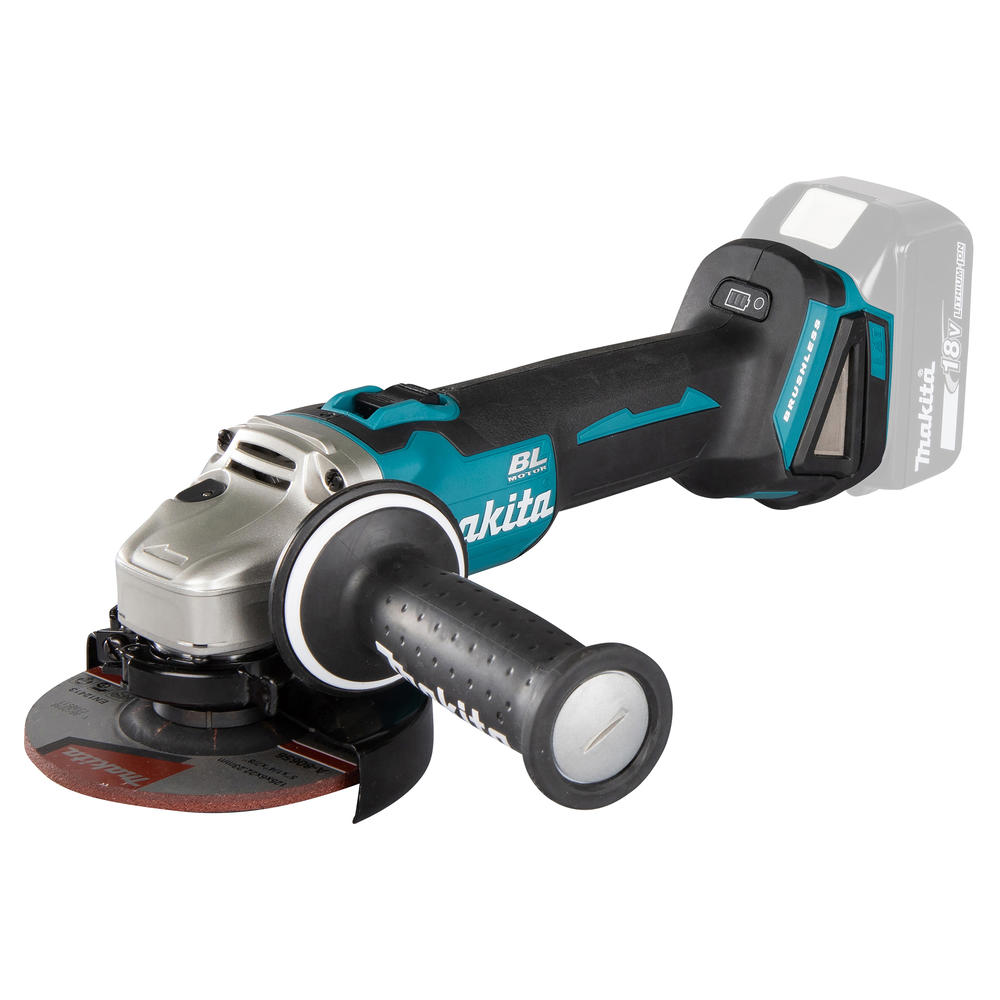

Makita DGA504Z 18V LXT Brushless 125mm Slide Switch Angle Grinder (Body Only)

Name: Makita DGA504Z 18V LXT Brushless 125mm Slide Switch Angle Grinder (Body Only)
Brand: Makita
SKU: DGA504Z
Availability: InStock

2kg bare18V3 years (with registration)

18V LXT brushless 125mm angle grinder. 8,500rpm, M14, slide switch, soft start, ADT. Body only.

Adds it to My Tools, kept on this device

Lowest price we track

£134.95at Tooled Up · + £6.95 delivery

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£134.95 + £6.95 delivery£141.90View ›

My Tool Shed£134.95 + £6.95 delivery£141.90View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

125mm

Disc

8,500rpm

Max speed

2kg

Weight (bare)

Where it sits among 125mm angle grinders

Scaled against the 59 angle grinders with a 125mm disc we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Cut depth29mm

20mm lowestMakita GA5040Chighest 35mmMakita GA5030R

Max speed8,500rpm

7,000rpm lowestDeWalt DCG412highest 12,000rpmDeWalt DWE4117

Weight (bare)2kg

1.57kg lightestEinhell TP-AG 18/125 F Li BLheaviest 2.9kgMakita GA5021C

Noise (LpA)82dB(A)

79dB(A) lowestMakita DGA513highest 95dB(A)Bosch GWS 14-125 S

Compare it with: + DeWalt DCG412 + Einhell TP-AG 18/125 CE Q Li + Bosch GWX 18V-10 PC + Milwaukee M18 FSAGF125XPDB

Full specs

From Makita's own documentation. Checked 25/09/2026. Report a spec error ›

Disc & Cutting

Disc diameter125 mm

Disc bore22.23 mm

Disc mount systemM14 (Standard)

Spindle threadM14

Max cut depth29

Voltage18V

Extractor auto-startNo

Physical & Build

Weight (bare)2 kg

Weight (with battery)2.6 kg

Noise level82 dB(A) LpA / 90 dB(A) LwA

Vibration6.5 m/s²

Performance

No-load speed8,500 rpm

MotorBrushless

Safety

Soft start✓ Yes

Overload protection✓ Yes

Tool-free nutNo (standard nut + spanner)

Handle & Control

Switch typeSlide

Side handle✓ Yes

Lock wrench✓ Yes

The verdictOur take

The DGA504 is an earlier brushless 125mm LXT grinder with soft start and automatic speed control, but no electric brake. The newer DGA513 adds a brake and AFT kickback protection for the same slide-switch layout.

Powered by Makita 18V LXT · 7

All 7 batteries that fit this tool, smallest first. Kits and chargers ›

BL1820B 2.0Ah · 36Wh 0.38kg 2.38kg from £49.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1830B 3.0Ah · 54Wh 0.64kg 2.64kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1840B 4.0Ah · 72Wh 0.64kg 2.64kg from £69.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1850B 5.0Ah · 90Wh 0.63kg 2.63kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1860B 6.0Ah · 108Wh 0.66kg 2.66kg from £79.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1890 9.0Ah · 162Wh 0.97kg 2.97kg from £119.98at Machine Mart + £4.99 delivery View at Machine Mart ›

BL18120 12.0Ah · 216Wh 1.3kg 3.3kg from £129.95at Tooled Up + £6.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.
