DHS783 Circular Saw

£399.95at Tooled Up · + £5.95 delivery · Available to order

View at Tooled Up › We may earn a commission

‹ Circular Saws

18V Twin (36V) · Brushless Makita DHS783ZJU 36V (2x18V) LXT Brushless 190mm Circular Saw (Body Only, MakPac)

Circular Saws · Makita 18V Twin (36V)

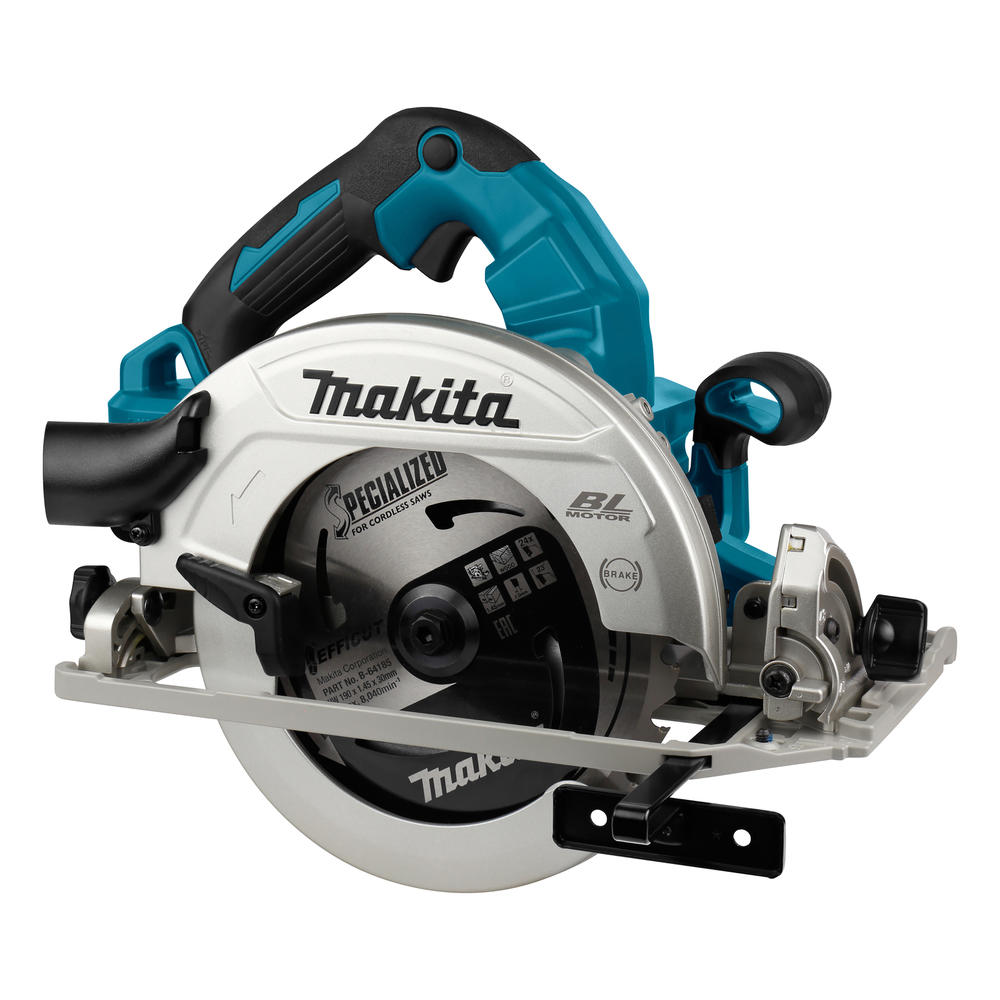

Makita DHS783ZJU 36V (2x18V) LXT Brushless 190mm Circular Saw (Body Only, MakPac)

Name: Makita DHS783ZJU 36V (2x18V) LXT Brushless 190mm Circular Saw (Body Only, MakPac)
Brand: Makita
SKU: DHS783ZJU
Availability: BackOrder

3.9kg bare36V (2x18V)3 years (with registration)

Twin 18V LXT (36V) brushless 190mm circular saw with AWS (wireless unit supplied). 62.5mm at 90°, 43mm at 45°, 0–48° bevel, 6000rpm, electric brake. Body only, MakPac.

Adds it to My Tools, kept on this device

Lowest price we track

£399.95at Tooled Up · + £5.95 delivery · Available to order

View at Tooled Up ›

Compare retailersTotal with delivery

Tooled Up Lowest£399.95 + £5.95 delivery · Available to order£405.90View ›

My Tool Shed£399.95 + £5.95 delivery · Available to order£405.90View ›

Prices from UK retailer feeds, updated daily.We may earn a commission

190mm

Blade

62.5mm

Cut depth (90°)

6,000rpm

Max speed

3.9kg

Weight (bare)

Where it sits among 190mm circular saws

Scaled against the 29 circular saws with a 190mm blade we list, so other sizes aren't in the mix. Not a score: bigger isn't always better for your job.

Cut depth at 90°62.5mm

61mm lowestDeWalt DCS579highest 70mmBosch GKS 18V-68 C

Cut depth at 45°43mm

43mm lowestThis onehighest 53mmMilwaukee M18 FCS66GR3

Max bevel angle48°

45° lowestEinhell TC-CS 1410highest 57°DeWalt DCS573

Weight (bare)3.9kg

2.92kg lightestEinhell TP-CS 18/190 Li BLheaviest 5kgDeWalt DCS577

Compare it with: + DeWalt DCS578 + Einhell TP-CS 18/190 Li BL + Bosch GKS 18V-68 G + Milwaukee M18 BLCS66

Full specs

From Makita's own documentation. Checked 25/09/2026. Report a spec error ›

Cutting

Saw typeWood

Blade diameter190 mm

Blade bore30 mm

Max depth (90°)62.5 mm

Max depth (45°)43 mm

Bevel range0–48°

Blade included✓ Yes

Rip fence included✓ Yes

Power & Motor

Voltage36V (2x18V)

MotorBrushless

No-load speed6,000 rpm

Dust & Rail

Dust port size35mm inner / 40mm outer

Extractor hoseOther extractor hoses: check the adaptor fits this port

Extractor auto-startYes (via add-on module)

Auto-start systemMakita AWS (wireless unit 198900-7 supplied, U suffix)

Physical & Build

Weight (bare)3.9 kg

Weight (with battery)5.1 kg

LED work light✓ Yes

Case typeMakPac

Case included✓ Yes

Noise level96 dB(A) LpA / 104 dB(A) LwA

Vibration≤2.5 m/s²

The verdictOur take

The DHS783 is the AWS version of the DHS782: the same brushless 190mm twin-18V saw at 6000rpm and 62.5mm depth, with the wireless unit for automatic extractor start supplied in the MakPac. Choose it over the DHS782 if you run a Makita AWS extractor.

Powered by Makita 18V Twin (36V) · 7

All 7 batteries that fit this tool, smallest first.

BL1820B 2.0Ah · 36Wh 0.38kg 4.66kg from £49.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1830B 3.0Ah · 54Wh 0.64kg 5.18kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1840B 4.0Ah · 72Wh 0.64kg 5.18kg from £69.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1850B 5.0Ah · 90Wh 0.63kg 5.16kg from £59.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1860B 6.0Ah · 108Wh 0.66kg 5.22kg from £79.95at Tooled Up + £6.95 delivery View at Tooled Up ›

BL1890 9.0Ah · 162Wh 0.97kg 5.84kg from £119.98at Machine Mart + £4.99 delivery View at Machine Mart ›

BL18120 12.0Ah · 216Wh 1.3kg 6.5kg from £129.95at Tooled Up + £6.95 delivery View at Tooled Up ›

Tool weight worked out by adding each pack's weight to the bare tool, using the makers' figures. It takes two batteries, so each figure includes two packs. The maker's own with-battery figure can differ slightly. We may earn a commission on retailer links.
